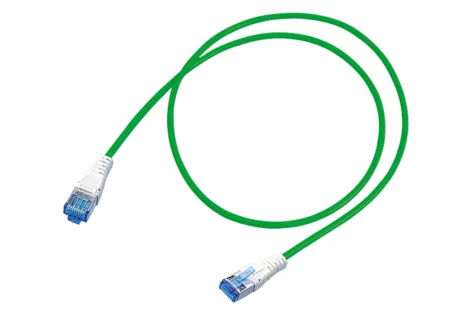

Patch Cord Cat. 6, U/UTP, 4P, LSZH, green, RJ45/u-RJ45/u, 3.0 m (R311942)

Patch Cord Cat. 6, U/UTP, 4P, LSZH, green, RJ45/u-RJ45/u, 3.0 m (R311942)

Patch Cord Cat. 6, U/UTP, 4P, LSZH, green, RJ45/u-RJ45/u, 3.0 m (R311942)

Cable identification: U/UTP

Outer jacket: LSZH

Conductor diameter copper strand: AWG 24/7

Screened in pairs: no

Overall screen: no

Outer diameter: max. 6.0 mm

Артикул: R311942 Категорія:
Mechanical Data

Color Code RAL

6018 Yellow green

Cable length

3 m

Technical Data

Wire type

stranded wire

Number of wires

8

Cable type

Patch cord

Category

Cat. 6

Jacket material

LSZH

Cable jacket characteristics

Cable, metal-free

zero-halogen

Stranding

4 x 2 pairs

Wire diameter

AWG 24/7

Shielding

U/UTP

Cable overall diameter

6.0 mm

Category connector (A)

Cat. 6

Category connector (B)

Cat. 6

Connector type (A)

RJ45

Shielding connector (A)

unshielded

Shielding connector (B)

unshielded

PoE

Yes

Connector class

connector

Wiring diagram

TIA-568A

Standard

Compliant with Cat. 6 Class E (250 MHz) requirements: ISO/IEC 11801

Compliant with Cat. 6 component standard IEC 60603-7-4

Compliant with Cat. 6 component standard IEC 60603-7-5

Fulfilled the standard IEC 61935-2

Flexible cable, U/UTP, 4 x 2 x AWG 24/7, LSZH. Low-smoke in acc. with IEC 61034 and halogen-free in acc. with IEC 60754-1. Halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

Mounted on both sides with

RJ45 connector compliant with Cat. 6 component standard. Key standard: IEC 60603-7 RJ45 category 6; IEC 60603-7-1 to 5. Strain-relief function in acc. with TIA TIA/EIA 568.2-D.

Complies with requirements of Cat. 6 for the establishing of transmission links of class E in acc. with ISO/IEC 11801 and EN 50173-1 (DIN EN 50173-1).

Optional:

Visual coding, mechanical coding and lock protection.
