Cable identification: U/UTP
Outer jacket: LSZH
Conductor diameter copper strand: AWG 24/7
Screened in pairs: no
Overall screen: no
Outer diameter: max. 6.0 mm
|Number of wires||
|Cable jacket characteristics||
4 x 2 pairs
|Cable overall diameter||
|Category connector (A)||
|Category connector (B)||
|Connector type (A)||
|Shielding connector (A)||
|Shielding connector (B)||
Compliant with Cat. 6 Class E (250 MHz) requirements: ISO/IEC 11801
Compliant with Cat. 6 component standard IEC 60603-7-4
Compliant with Cat. 6 component standard IEC 60603-7-5
Fulfilled the standard IEC 61935-2

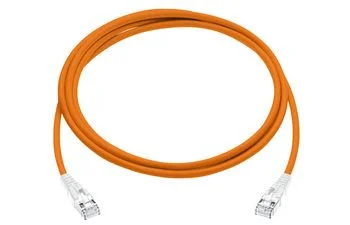

Flexible cable, U/UTP, 4 x 2 x AWG 24/7, LSZH. Low-smoke in acc. with IEC 61034 and halogen-free in acc. with IEC 60754-1. Halogen-free and heavy-metal free in acc. with EU directives RoHS 2.
Mounted on both sides with
RJ45 connector compliant with Cat. 6 component standard. Key standard: IEC 60603-7 RJ45 category 6; IEC 60603-7-1 to 5. Strain-relief function in acc. with TIA TIA/EIA 568.2-D.
Complies with requirements of Cat. 6 for the establishing of transmission links of class E in acc. with ISO/IEC 11801 and EN 50173-1 (DIN EN 50173-1).
Visual coding, mechanical coding and lock protection.
