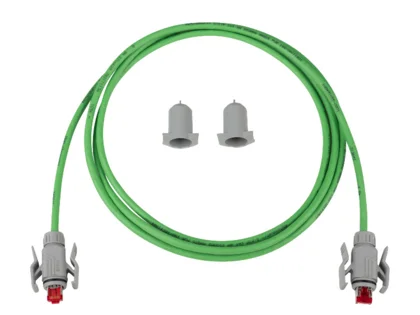

Patch Cord Cat. 6A, S/FTP, 4P, PUR, green, RJ45/s IP67 type 06-RJ45/s IP67 type 06, 2.5 m (R313641)

Name: Patch Cord Cat. 6A, S/FTP, 4P, PUR, green, RJ45/s IP67 type 06-RJ45/s IP67 type 06, 2.5 m (R313641) - ДП "Сінергія"
SKU: R313641

Patch Cord Cat. 6A, S/FTP, 4P, PUR, green, RJ45/s IP67 type 06-RJ45/s IP67 type 06, 2.5 m (R313641)

Patch cords equipped with PUR jackets, ideal for use in harsh environments. Both sides fitted with RJ45/s IP67 connector incl. protective cap.

Артикул: R313641 Категорія: Patch Cords - Cat. 6A

Mechanical Data

Color Code RAL	6018 Yellow green
Cable length	2.5 m

Technical Data

Wire type	stranded wire
Number of wires	8
Cable type	Patch cord
Category	Cat. 6A ISO
Jacket material	PUR
Cable jacket characteristics	Cable, metal-free flame retardant zero-halogen
Stranding	4 pairs
Wire diameter	AWG 26/7
Shielding	S/FTP
Cable overall diameter	6.0 mm
Category connector (A)	Cat. 6A ISO
Category connector (B)	Cat. 6A ISO
Connector type (A)	RJ45
Shielding connector (A)	shielded
Shielding connector (B)	shielded
Protection class IP (A)	IP 67 (correlates to NEMA 6P)
Protection class IP (B)	IP 67 (correlates to NEMA 6P)
PoE	Yes
Connector class	connector
Wiring diagram	TIA-568A
Standard	IEC 61156-6 TIA/EIA 568.2-D EN 50173-1 EN 50288-4-2 Compliant with Cat. 6 component standard IEC 60603-7-4 Compliant with Cat. 6 Class E (250 MHz) requirements: ISO/IEC 11801 Protection class: IP67 acc. to IEC 60529 Compliant with Cat. 6 component standard IEC 60603-7-5

Flexible cable, S/FTP, 4P, 4 x 2 (AWG 26/7), PUR, color green (RAL 6018). Resistant against mineral oil, ASTM oil and UV radiation.

Mounted on both sides with connector with a round type 06 protective cap, color gray (RAL 7042) for protection class IP67 in acc. with IEC 60529.

RJ45 connector compliant with Cat. 6 component standard. Key standard: IEC 60603-7 RJ45 category 6; IEC 60603-7-1 to 5. Strain-relief function in acc. with TIA 568-C.

Complies with requirements of Cat. 6 for the establishing of transmission linksof class E and class EA in acc. with ISO/IEC 11801 ed. 2.2, June 2011 and EN 50173-1, May 2011 (DIN EN 50173-1). Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four.
