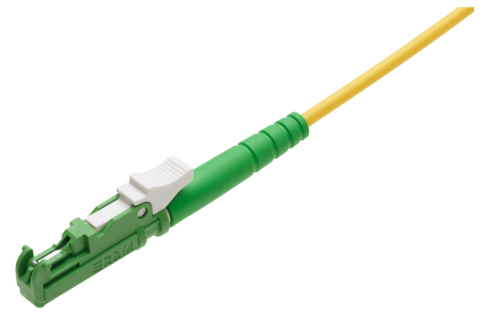

Both sides fitted with one E-2000™ APC 8° connector.
Connector color: green.
Lever color: code 6, white.
Fiber: SM E9/125 G.652.D/G.657.A1 (OS1, OS2).
Cable: Ø 2.0 mm, green.
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm |
acc. to IEC 61754-15 acc. to DIN EN 186270 |
| Protection class IP |
IP 20 |
| Connector class |
connector |
| Protection class IP (A) |
IP 20 |
| Number of connectors (A) | 1 |
| Protection class IP (B) |
IP 20 |
| Number of connectors (B) | 1 |
| Cable type |
Patch cord, polarity A-B |
| Jacket material |
LSFH |
| Cable jacket characteristics |
Cable, metal-free Zero-halogen Flame-retardant |
| Cable overall diameter | Ø 3.0 mm (±0.15) |
| Connector type (A) |
E-2000™ |
| Polishing plug (A) |
APC 8° |
| Attenuation grade IL (A) | C |
| Return loss grade RL (A) | 1 |
| Connector color (A) |
green |
| Lever- / frame-coding (A) |
Color |
| Lever color (A) |
white |
| Connector type (B) |
E-2000™ |
| Polishing plug (B) |
APC 8° |
| Attenuation grade IL (B) | C |
| Return loss grade RL (B) | 1 |
| Connector color (B) |
green |
| Lever- / frame-coding (B) |
Color |
| Lever color (B) |
white |
| Fiber type |
singlemode (SM) |
| Fiber class |
G.652.D + G.657.A1 (OS1, OS2) |
| Conductor type |
tight buffer |
| Fiber diameter |
E9 / 125 µm |
| Patch cord type |
simplex |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 3.0 m / 9 ft 10 in |
| Color |
yellow |
Patch cord with LSZH jacket, Ø 2.0 mm, green, singlemode G.652.D/G.657.A1 9/125 µm (OS1, OS2), length .
Mounted on both sides with E-2000™ (LSH) connectors in accordance with IEC 61754-15 and EN 186270. Zirconia (ceramic) ferrule with an angled polish APC 8° endface geometry, connectors tuned in accordance with IEC 61755-3-2 and qualified in acc. with IEC 61753-1 for category U (uncontrolled environment) and category E (extreme environment). Green connector housing (singlemode) and white lever, material PBT / UL 94 V-0, green strain relief, material TPE / UL 94 V-0 and silver-colored metal dust shutter.
Optical specifications (random mated):
Performance acc. to IEC 61753-1 (Table A.12):
Insertion loss (IL) Grade C for 97% of the tested specimen: = 0.50 dB / typical = 0.25 dB
Return loss (RL) Grade 1: = 60 dB (typical = 80 dB)
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 1000 mating cycles
Pull-out force patch cord: = 100 N
Optional:
Visual coding, mechanical coding and lock protection.
