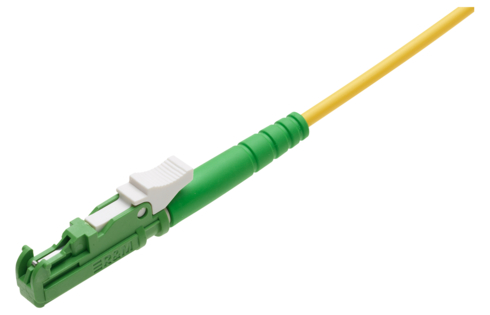

Patch Cord E-2000™ APC - E-2000™ APC, green/white, G.652.D + G.657.A1, C/1, Ø 3.0mm, 5 m (R30987)

Patch Cord E-2000™ APC - E-2000™ APC, green/white, G.652.D + G.657.A1, C/1, Ø 3.0mm, 5 m (R30987)

Patch Cord E-2000™ APC - E-2000™ APC, green/white, G.652.D + G.657.A1, C/1, Ø 3.0mm, 5 m (R30987)

Both sides fitted with one E-2000™ APC 8° connector.
Connector color: green.
Lever color: white.
Fiber: SM E9/125 G.652.D/G.657.A1 (OS1, OS2).
Cable: Ø 3.0 mm, yellow.

Артикул: R30987 Категорія:

Technical Data

DESCRIPTIONVALUE/VALUE RANGE
Standard / norm

acc. to IEC 61754-15

acc. to DIN EN 186270

Protection class IP

IP 20

Connector class

connector

Protection class IP (A)

IP 20

Number of connectors (A)1
Protection class IP (B)

IP 20

Number of connectors (B)1
Cable type

Patch cord, polarity A-B

Jacket material

LSFH

Cable jacket characteristics

Cable, metal-free

Zero-halogen

Flame-retardant

Cable overall diameterØ 3.0 mm (±0.15)
Connector type (A)

E-2000™

Polishing plug (A)

APC 8°

Attenuation grade IL (A)C
Return loss grade RL (A)1
Connector color (A)

green

Lever- / frame-coding (A)

Color

Lever color (A)

white

Connector type (B)

E-2000™

Polishing plug (B)

APC 8°

Attenuation grade IL (B)C
Return loss grade RL (B)1
Connector color (B)

green

Lever- / frame-coding (B)

Color

Lever color (B)

white

Fiber type

singlemode (SM)

Fiber class

G.652.D + G.657.A1 (OS1, OS2)

Conductor type

tight buffer

Fiber diameter

E9 / 125 µm

Patch cord type

simplex

Mechanical Data

DESCRIPTIONVALUE/VALUE RANGE
Cable length5.0 m / 16 ft
Color

yellow

Patch cord with LSZH jacket, Ø 3.0 mm, yellow, singlemode G.652.D/G.657.A1 9/125 µm (OS1, OS2), length .
Mounted on both sides with E-2000™ (LSH) connectors in accordance with IEC 61754-15 and EN 186270. Zirconia (ceramic) ferrule with an angled polish APC 8° endface geometry, connectors tuned in accordance with IEC 61755-3-2 and qualified in acc. with IEC 61753-1 for category C (controlled environment). Green connector housing (singlemode) and white lever, material PBT / UL 94 V-0, green strain relief, material TPE / UL 94 V-0 and silver-colored metal dust shutter.
Optical specifications (random mated):
Performance acc. to IEC 61753-1 (Table A.12):
Insertion loss (IL) Grade C for 97% of the tested specimen: = 0.50 dB / typical = 0.25 dB
Return loss (RL) Grade 1: = 60 dB (typical = 80 dB)
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 1000 mating cycles
Pull-out force patch cord: = 100 N
