Patch cord FO, E-2000-Simplex APC 8° Grade C - SC-Simplex PC/UPC Grade C, Singlemode OS2 G.652.D, Simplex 3.0mm, Eca (LSZH), 10m (R306344)

Patch cord FO, E-2000-Simplex APC 8° Grade C - SC-Simplex PC/UPC Grade  C, Singlemode OS2 G.652.D, Simplex 3.0mm, Eca (LSZH), 10m (R306344)

Patch cord FO, E-2000-Simplex APC 8° Grade C - SC-Simplex PC/UPC Grade C, Singlemode OS2 G.652.D, Simplex 3.0mm, Eca (LSZH), 10m (R306344)

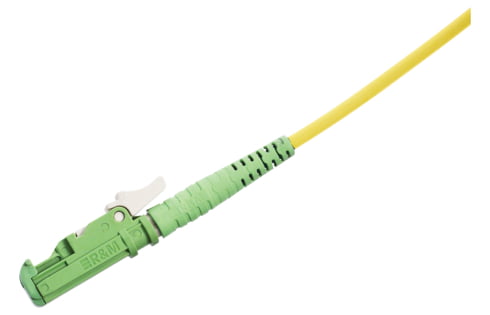

Fitted with one E-2000™ APC 8° and one SC PC connector.
Connector color E-2000™: green.
Lever color E-2000™: white.
Connector color SC: blue.
Fiber: SM E9/125 G.652.D/G.657.A1(OS1, OS2).
Cable: Ø 3.0 mm, yellow.

Артикул: R306344 Категорія:
Mechanical Data

Color

yellow

Cable length

10 m

Technical Data

Patch cord type

simplex

Conductor type FO

tight buffer

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

1

Number of connectors (B)

1

Cable type

Patch cord, polarity A-B

Jacket material

LSZH

Cable jacket characteristics

zero-halogen

Connector type (A)

E-2000™

Connector type (B)

SC

Connector color (A)

green

Connector color (B)

blue

Lever- / frame-coding (A)

Color

Lever color (A)

white

Polishing plug (A)

APC 8°

Polishing plug (B)

PC

Protection class IP (A)

IP 20

Protection class IP (B)

IP 20

Return loss grade RL (A)

1

Return loss grade RL (B)

2

Attenuation grade IL (A)

C

Attenuation grade IL (B)

C

Connector class

connector

Patch cord with LSZH jacket, Ø 3.0 mm, yellow, singlemode G.652.D/G.657.A1 9/125 µm (OS1, OS2), length .

Mounted on one side with E-2000™ (LSH) connector in accordance with IEC 61754-15 and EN 186270. Zirconia (ceramic) ferrule with an angled polish APC 8° endface geometry, connectors tuned in accordance withIEC 61755-3-2 and qualified in acc. with IEC 61753-1 for category C (controlled environment). Green connector housing (singlemode) and white lever, material PBT / UL 94 V-0, green strain relief, material TPE / UL 94 V-0 and silver-colored metal dust shutter.

Optical specifications (random mated):
Performance acc. to IEC 61753-1 (Table A.12):
Insertion loss (IL) Grade C for 97% of the tested specimen: = 0.50 dB / typical = 0.25 dB
Return loss (RL) Grade 1: = 60 dB (typical = 80 dB)
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 1000 mating cycles Pull-out force patch cord: = 100 Nand one side with SC connector in acc. with IEC 61754-4. Zirconia (ceramic) ferrule with a PC polished endface geometry, connectors tuned in accordance with IEC 61755-3-1 and qualified in acc. with IEC 61753-1 for category C (controlled environment). Blue connector housing (singlemode), material PBT / UL 94 V-0, blue strain relief, material TPE / UL 94 V-0 and plastic dust cover.Optical specifications (random mated): Performance acc. to IEC 61753-1 (Table A.12): Insertion loss (IL) Grade C for 97% of the tested specimen: = 0.50 dB / typical = 0.25 dB Return loss (RL) Grade 2: = 45 dB (typical = 55 dB) Mechanical specifications: Mating cycles: delta IL < 0.2 dB after 500 mating cycles Pull-out force patch cord: = 100 N
