Patch cord FO, E-2000-Compact APC 8° Grade C - FC-Simplex PC/UPC Grade C, Singlemode OS2 G.652.D, Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 5m (R306321)

Name: Patch cord FO, E-2000-Compact APC 8° Grade C - FC-Simplex PC/UPC Grade C, Singlemode OS2 G.652.D, Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 5m (R306321) - ДП "Сінергія"
SKU: R306321

Patch cord FO, E-2000-Compact APC 8° Grade C - FC-Simplex PC/UPC Grade C, Singlemode OS2 G.652.D, Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 5m (R306321)

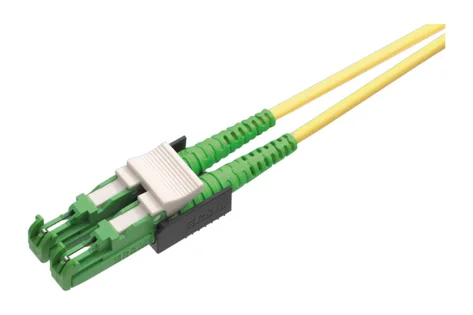

Fitted with one E-2000™-Compact APC 8° and two FC PC connectors (wide key).
Connector color E-2000™-Compact: green.
Lever color E-2000™-Compact: white.
Connector color FC: metallic.
Fiber: SM E9/125 G.652.D/G.657.A1 (OS1, OS2).
Cable: F8 2.7x5.5 mm, yellow.

Артикул: R306321 Категорія: Misc

Mechanical Data

Color	yellow
Cable length	5 m

Technical Data

Patch cord type	duplex figure 8
Conductor type FO	tight buffer
Fiber type	Singlemode (SM)
Fiber class	G.657.A1 (covers G.652.D, OS1, OS2)
Fiber diameter	n.a.
Number of connectors (A)	1
Number of connectors (B)	2
Cable type	Patch cord, polarity A-B
Jacket material	LSZH
Cable jacket characteristics	zero-halogen
Connector type (A)	E-2000™-Compact
Connector type (B)	FC
Connector color (A)	green
Connector color (B)	metallic
Lever- / frame-coding (A)	Color
Lever color (A)	white
Polishing plug (A)	APC 8°
Polishing plug (B)	PC
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss grade RL (A)	1
Return loss grade RL (B)	2
Attenuation grade IL (A)	C
Attenuation grade IL (B)	C
Connector class	connector
