Patch cord FO, E-2000-Compact PC/UPC Grade Bm - SC-Duplex PC/UPC Grade Bm, Multimode OM2 (G50), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 3m (R304028)

Patch cord FO, E-2000-Compact PC/UPC Grade Bm - SC-Duplex PC/UPC Grade  Bm, Multimode OM2 (G50), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 3m (R304028)

Patch cord FO, E-2000-Compact PC/UPC Grade Bm - SC-Duplex PC/UPC Grade Bm, Multimode OM2 (G50), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 3m (R304028)

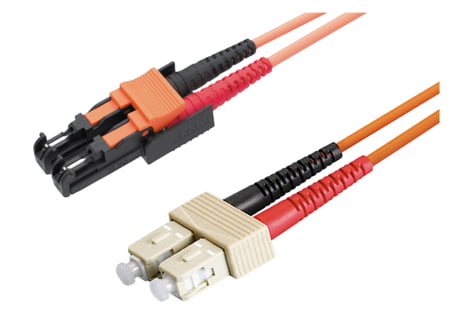

Fitted with one E-2000™-Compact PC and one SC-Duplex PC connector.

Connector color E-2000™-Compact: black.

Lever color E-2000™-Compact: orange.

Connector color SC-Duplex: beige.

Fiber: MM G50/125 (OM2).

Cable: F8 2.7x5.5 mm, orange.

Артикул: R304028 Категорія:
Mechanical Data

Color

orange

Cable length

3 m

Technical Data

Patch cord type

duplex figure 8

Conductor type FO

tight buffer

Fiber type

Multimode (MM)

Fiber class

OM2

Fiber diameter

G50 / 125 µm

Number of connectors (A)

1

Number of connectors (B)

1

Cable type

Patch cord, polarity A-B

Jacket material

LSZH

Cable jacket characteristics

Cable, metal-free

Connector type (A)

E-2000™-Compact

Connector type (B)

SC-Duplex

Connector color (A)

black

Connector color (B)

beige

Lever- / frame-coding (A)

Color

Lever color (A)

orange

Polishing plug (A)

PC

Polishing plug (B)

PC

Protection class IP (A)

IP 20

Protection class IP (B)

IP 20

Return loss grade RL (A)

3

Return loss grade RL (B)

3

Attenuation grade IL (A)

Bm

Attenuation grade IL (B)

Bm

Connector class

connector

Patch cord with LSZH jacket, F8 2.7x5.5 mm, orange, multimode G50 50/125 µm (OM2), length .

Mounted on one side with E-2000™-Compact (LSHRJ) connector in accordance with IEC 61754-15 and EN 186270. Zirconia (ceramic) ferrule with a PC polished endface geometry, connector qualified in acc. with IEC 61753-1 forcategory C (controlled environment). Black connector housing (multimode) and orange duplex lever, material PBT / UL 94 V-0, 1 x black and 1 x red strain relief, material TPE / UL 94 V-0, black duplex clip, material PBT+ASA / UL 94 V-0 and silver-colored metal dust shutter.

Optical specifications (random mated):
Performance:
Insertion loss (IL) Grade Bm for 100% of the tested specimen: ≤ 0.50dB / typical ≤ 0.15 dB
Return loss (RL) Grade 3: ≥ 35 dB
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 1000 mating cycles Pull-out force patch cord: ≥ 100 N (per connector)and one side with SC-Duplex connector in acc. with IEC 61754-4. Zirconia (ceramic) ferrule with a PC polished endface geometry, connector qualified in acc. with IEC 61753-1 for category C (controlled environment). Beige connector housing (multimode), material PBT / UL 94 V-0, beige duplex clip, 1 x black and 1 x red strain relief, material TPE / UL 94 V-0 and plastic dust cover.Optical specifications (random mated): Performance: Insertion loss (IL) Grade Bm for 100% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.15 dB Return loss (RL) Grade 3: ≥ 35 dB Mechanical specifications: Matingcycles: delta IL < 0.2 dB after 500 mating cycles Pull-out force patch cord: ≥ 100 N (per connector)
