Patch cord FO, E-2000-Compact PC/UPC Grade Bm - SC-RJ PC/UPC Grade Bm, Multimode OM2 (G50), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 5m (R304040)

Name: Patch cord FO, E-2000-Compact PC/UPC Grade Bm - SC-RJ PC/UPC Grade Bm, Multimode OM2 (G50), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 5m (R304040) - ДП "Сінергія"
SKU: R304040

Patch cord FO, E-2000-Compact PC/UPC Grade Bm - SC-RJ PC/UPC Grade Bm, Multimode OM2 (G50), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 5m (R304040)

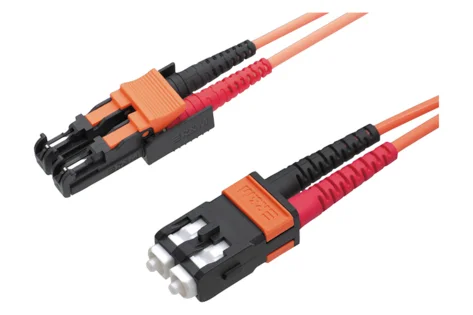

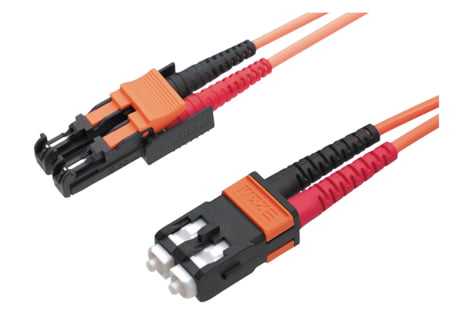

Fitted with one E-2000™-Compact PC and one SC-RJ PC connector.

Connector color E-2000™-Compact: black.

Lever color E-2000™-Compact: orange.

Connector color SC-RJ: black.

Clip color: orange.

Fiber: MM G50/125 (OM2).

Cable: F8 2.7x5.5 mm, orange.

Артикул: R304040 Категорія: Misc

Mechanical Data

Color	orange
Cable length	5 m

Technical Data

Patch cord type	duplex figure 8
Conductor type FO	tight buffer
Fiber type	Multimode (MM)
Fiber class	OM2
Fiber diameter	G50 / 125 µm
Number of connectors (A)	1
Number of connectors (B)	1
Cable type	Patch cord, polarity A-B
Jacket material	LSZH
Cable jacket characteristics	Cable, metal-free
Connector type (A)	E-2000™-Compact
Connector type (B)	SC-RJ
Connector color (A)	black
Connector color (B)	black
Color (B1)	orange
Lever- / frame-coding (A)	Color
Lever color (A)	orange
Lever- / frame-coding (B)	Color
Polishing plug (A)	PC
Polishing plug (B)	PC
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss grade RL (A)	3
Return loss grade RL (B)	3
Attenuation grade IL (A)	Bm
Attenuation grade IL (B)	Bm
Connector class	connector
