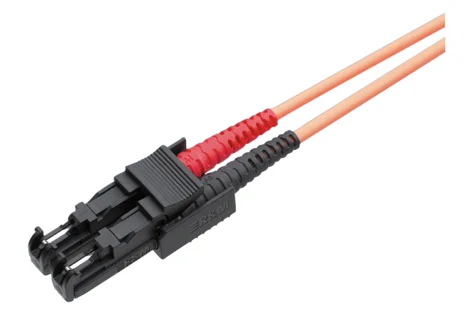

Patch cord FO, E-2000-Compact PC/UPC Grade Bm - E-2000-Compact PC/UPC Grade Bm, Multimode OM1 (G62.5), Duplex Figur 8 (2.7 x 5.6),Eca (LSZH), 2m (R304062)

Name: Patch cord FO, E-2000-Compact PC/UPC Grade Bm - E-2000-Compact PC/UPC Grade Bm, Multimode OM1 (G62.5), Duplex Figur 8 (2.7 x 5.6),Eca (LSZH), 2m (R304062) - ДП "Сінергія"
SKU: R304062

Patch cord FO, E-2000-Compact PC/UPC Grade Bm - E-2000-Compact PC/UPC Grade Bm, Multimode OM1 (G62.5), Duplex Figur 8 (2.7 x 5.6),Eca (LSZH), 2m (R304062)

Both sides fitted with one E-2000™ Compact PC connector.

Connector color: black.

Lever color: black.

Fiber: MM G62.5/125 (OM1).

Cable: F8 2.7x5.5 mm, orange.

Артикул: R304062 Категорія: E-2000™-Compact

Scope of supply

E-2000 Compact Rangierkabel werden als Simplex Stecker assembliert. Duplex Clip und Hebel beiliegend.

Mechanical Data

Color	orange
Cable length	2 m

Technical Data

Patch cord type	duplex figure 8
Conductor type FO	tight buffer
Fiber type	Multimode (MM)
Fiber class	OM1
Fiber diameter	G62.5 / 125 µm
Number of connectors (A)	1
Number of connectors (B)	1
Cable type	Patch cord, polarity A-B
Jacket material	LSZH
Cable jacket characteristics	flame retardant
Cable overall diameter	F8 2.7 x 5.5 mm (±0.15)
Connector type (A)	E-2000™-Compact
Connector type (B)	E-2000™-Compact
Connector color (A)	black
Connector color (B)	black
Lever- / frame-coding (A)	Color
Lever color (A)	black
Lever- / frame-coding (B)	Color
Lever color (B)	black
Polishing plug (A)	PC
Polishing plug (B)	PC
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss grade RL (A)	3
Return loss grade RL (B)	3
Attenuation grade IL (A)	Bm
Attenuation grade IL (B)	Bm
Connector class	connector
