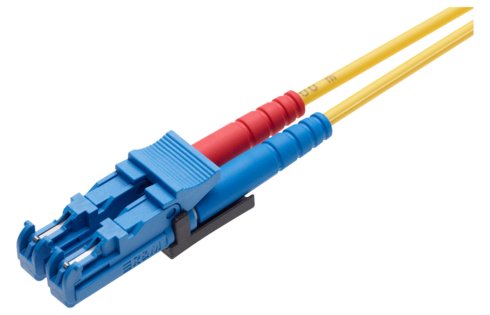

Both sides fitted with one E-2000™-Compact PC connector.
Connector color: blue.
Lever color: blue.
Fiber: SM E9/125 G.652.D/G.657.A1 (OS1, OS2).
Cable: F8 2.7x5.5 mm, yellow.
E-2000 Compact Rangierkabel werden als Simplex Stecker assembliert. Duplex Clip und Hebel beiliegend.
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Protection class IP |
IP 20 |
| Connector class |
connector |
| Protection class IP (A) |
IP 20 |
| Number of connectors (A) | 1 |
| Protection class IP (B) |
IP 20 |
| Number of connectors (B) | 1 |
| Cable type |
Patch cord, polarity A-B |
| Jacket material |
LSZH |
| Cable jacket characteristics |
Cable, metal-free Zero-halogen Flame-retardant |
| Cable overall diameter | F8 2.7 x 5.5 mm (±0.15) |
| Connector type (A) |
E-2000™-Compact |
| Polishing plug (A) |
PC |
| Attenuation grade IL (A) | D |
| Return loss grade RL (A) | 3 |
| Connector color (A) |
blue |
| Lever- / frame-coding (A) |
Color |
| Lever color (A) |
blue |
| Connector type (B) |
E-2000™-Compact |
| Polishing plug (B) |
PC |
| Attenuation grade IL (B) | D |
| Return loss grade RL (B) | 3 |
| Connector color (B) |
blue |
| Lever- / frame-coding (B) |
Color |
| Lever color (B) |
blue |
| Fiber type |
singlemode (SM) |
| Fiber class |
G.652.D + G.657.A1 (OS1, OS2) |
| Conductor type |
tight buffer |
| Fiber diameter |
E9 / 125 µm |
| Patch cord type |
duplex figure 8 |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 5.0 m / 16 ft |
| Color |
yellow |
Patch cord with LSZH jacket, F8 2.7x5.5 mm, yellow, singlemode G.652.D/G.657.A1 9/125 µm (OS1, OS2), length .
Mounted on both sides with E-2000™-Compact (LSHRJ) connectors in accordance with IEC 61754-15 and EN 186270. Zirconia (ceramic) ferrule with a PC polished endface geometry, connectors qualified in acc. with IEC 61753-1 for category C (controlled environment). Blue connector housing (singlemode) and blue duplex lever, material PBT / UL 94 V-0, 1 x blue and 1 x red strain relief, material TPE / UL 94 V-0, black duplex clip, material PBT+ASA / UL 94 V-0 and silver-colored metal dust shutter.
Optical specifications (random mated):
Performance acc. to IEC 61753-1 (Table A.12):
Insertion loss (IL) Grade D for 97% of the tested specimen: = 1.00 dB / typical = 0.50 dB
Return loss (RL) Grade 3: = 35 dB (typical = 45 dB)
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 1000 mating cycles
Pull-out force patch cord: = 100 N (per connector)
