Patch cord FO, E-2000-Simplex PC/UPC Grade C - SC-Simplex PC/UPC Grade C, Singlemode OS2 G.652.D, Simplex 3.0mm, Eca (LSZH), 10m (R302580)

Patch cord FO, E-2000-Simplex PC/UPC Grade C - SC-Simplex PC/UPC Grade  C, Singlemode OS2 G.652.D, Simplex 3.0mm, Eca (LSZH), 10m (R302580)

Patch cord FO, E-2000-Simplex PC/UPC Grade C - SC-Simplex PC/UPC Grade C, Singlemode OS2 G.652.D, Simplex 3.0mm, Eca (LSZH), 10m (R302580)

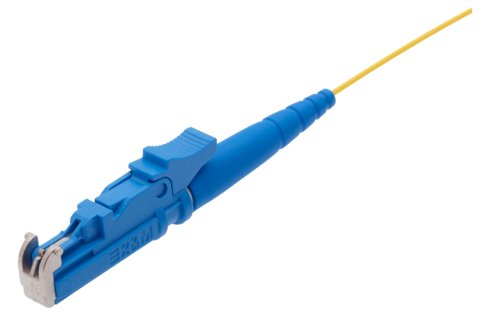

Fitted with one E-2000™ PC and one SC PC connector.
Connector color E-2000™: blue.
Lever color E-2000™: blue.
Connector color SC: blue.
Fiber: SM E9/125 G.652.D/G.657.A1 (OS1,OS2).
Cable: Ø 3.0 mm, yellow.

Артикул: R302580 Категорія:
Mechanical Data

Color

yellow

Cable length

10 m

Technical Data

Patch cord type

simplex

Conductor type FO

tight buffer

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

1

Number of connectors (B)

1

Cable type

Patch cord, polarity A-B

Jacket material

LSZH

Cable jacket characteristics

Cable, metal-free

Connector type (A)

E-2000™

Connector type (B)

SC

Connector color (A)

blue

Lever- / frame-coding (A)

Color

Lever color (A)

blue

Polishing plug (A)

PC

Polishing plug (B)

PC

Protection class IP (A)

IP 20

Protection class IP (B)

IP 20

Return loss grade RL (A)

2

Return loss grade RL (B)

2

Attenuation grade IL (A)

C

Attenuation grade IL (B)

C

Connector class

connector

Patch cord with LSZH jacket, Ø 3.0 mm, yellow, singlemode G.652.D/G.657.A1 9/125 µm (OS1, OS2), length .

Mounted on one side with E-2000™ (LSH) connector in accordance with IEC 61754-15 and EN 186270. Zirconia (ceramic) ferrule with a PC polished endface geometry, connectors tuned in accordance with IEC 61755-3-1 and qualified in acc. with IEC 61753-1 for category C (controlled environment). Blue connector housing (singlemode) and blue lever, material PBT / UL 94 V-0, blue strain relief, material TPE / UL 94 V-0 and silver-colored metal dust shutter.

Optical specifications (random mated):
Performance acc. to IEC 61753-1 (Table A.12):
Insertion loss (IL) Grade C for 97% of the tested specimen: = 0.50 dB / typical = 0.25 dB
Return loss (RL) Grade 2: = 45 dB (typical = 55 dB)
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 1000 mating cycles Pull-out force patch cord: = 100 Nand one side with SC connector in acc. with IEC 61754-4. Zirconia (ceramic) ferrule with a PC polished endface geometry, connectors tuned in accordance with IEC 61755-3-1 and qualified in acc. with IEC 61753-1 for category C (controlled environment). Blue connector housing (singlemode), material PBT / UL 94 V-0, blue strainrelief, material TPE / UL 94 V-0 and plastic dust cover.Optical specifications (random mated): Performance acc. to IEC 61753-1 (Table A.12): Insertion loss (IL) Grade C for 97% of the tested specimen: = 0.50 dB / typical = 0.25 dB Return loss (RL) Grade 2: = 45dB (typical = 55 dB) Mechanical specifications: Mating cycles: delta IL < 0.2 dB after 500 mating cycles Pull-out force patch cord: = 100 N
