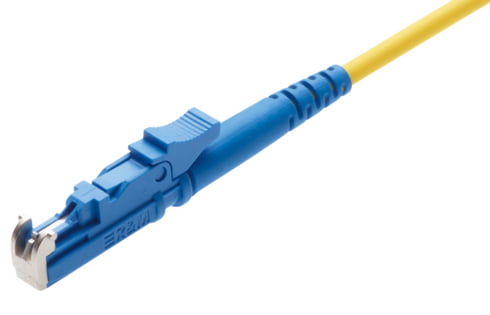

Both sides fitted with one E-2000™ PC connector.
Connector color: blue.
Lever color: blue.
Fiber: SM E9/125 G.652.D/G.657.A1 (OS1, OS2).
Cable: Ø 3.0 mm, yellow.
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm | acc. to IEC 61754-15 acc. to DIN EN 186270 |
| Protection class IP | IP 20 |
| Connector class | connector |
| Protection class IP (A) | IP 20 |
| Number of connectors (A) | 1 |
| Protection class IP (B) | IP 20 |
| Number of connectors (B) | 1 |
| Cable type | Patch cord, polarity A-B |
| Jacket material | LSZH |
| Cable jacket characteristics | Flame-retardant |
| Cable overall diameter | Ø 3.0 mm (±0.15) |
| Connector type (A) | E-2000™-Compact |
| Polishing plug (A) | PC |
| Attenuation grade IL (A) | C |
| Return loss grade RL (A) | 2 |
| Connector color (A) | blue |
| Lever- / frame-coding (A) | Color |
| Lever color (A) | blue |
| Connector type (B) | E-2000™-Compact |
| Polishing plug (B) | PC |
| Attenuation grade IL (B) | C |
| Return loss grade RL (B) | 2 |
| Connector color (B) | blue |
| Lever- / frame-coding (B) | Color |
| Lever color (B) | blue |
| Fiber type | singlemode (SM) |
| Fiber class | G.652.D + G.657.A1 (OS1, OS2) |
| Conductor type | tight buffer |
| Fiber diameter | E9 / 125 µm |
| Patch cord type | simplex |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 3.0 m / 9 ft 10 in |
| Color | yellow |
Patch cord with LSZH jacket, Ø 3.0 mm, yellow, singlemode G.652.D/G.657.A1 9/125 µm (OS1, OS2), length .
Mounted on both sides with E-2000™ (LSH) connectors in accordance with IEC 61754-15 and EN 186270. Zirconia (ceramic) ferrule with a PC polished endface geometry, connectors tuned in accordance with IEC 61755-3-1 and qualified in acc. with IEC 61753-1 for category C (controlled environment). Blue connector housing (singlemode) and blue lever, material PBT / UL 94 V-0, blue strain relief, material TPE / UL 94 V-0 and silver-colored metal dust shutter.
Optical specifications (random mated):
Performance acc. to IEC 61753-1 (Table A.12):
Insertion loss (IL) Grade C for 97% of the tested specimen: = 0.50 dB / typical = 0.25 dB
Return loss (RL) Grade 2: = 45 dB (typical = 55 dB)
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 1000 mating cycles
Pull-out force patch cord: = 100 N
Optional:
Visual coding, mechanical coding and lock protection.
