Cable identification: U/FTP
Outer jacket: LSZH
Conductor diameter copper strand: AWG 26/7
Screened in pairs: AL/foil
Overall screen: no
Outer diameter: max. 6.5 mm
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm |
Compliant with Cat. 6 Class E (250 MHz) requirements: ISO/IEC 11801 Compliant with Cat. 6 component standard IEC 60603-7-4 Compliant with Cat. 6 component standard IEC 60603-7-5 Fulfilled the standard IEC 61935-2 |
| Connector class |
connector |
| Shielding connector (A) |
shielded |
| Connector type (A) |
RJ45 |
| Category connector (A) |
Cat. 6 |
| Shielding connector (B) |
shielded |
| Connector type (B) |
RJ45 |
| Category connector (B) |
Cat. 6 |
| Cable type |
Patch cord, polarity A-B |
| Cable category |
Cat. 6 |
| Shielding |
U/FTP |
| Jacket material |
LSZH |
| Cable jacket characteristics |
Cable, metal-free Zero-halogen |
| Cable overall diameter | 6.5 mm |
| Conductor |
AWG 26/7 |
| Number of wires | 8 |
| Stranding |
4 pairs |
| Wire type |
stranded wire |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 5.0 m / 16 ft |
| Color Code RAL |
1021 Rape yellow |

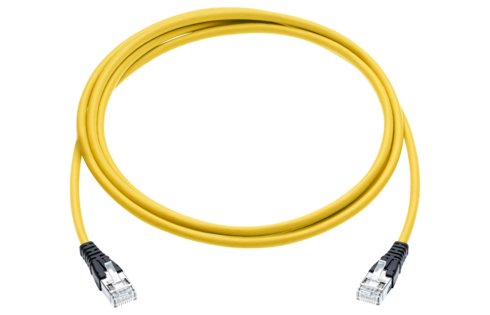

Flexible cable, U/FTP, 4 x 2 x AWG 26/7, LSZH,
1021 Rape yellow. Low-smoke in acc. with IEC 61034 and halogen-free in acc. with IEC 60754-1. Halogen-free and heavy-metal free in acc. with EU directives RoHS 2.
Mounted on both sides with
RJ45 connector compliant with Cat. 6 component standard. Key standard: IEC 60603-7 RJ45 category 6; IEC 60603-7-1 to 5. Strain-relief function in acc. with TIA 568-C.
Complies with requirements of Cat. 6 for the establishing of transmission links of class E and class EA in acc. with ISO/IEC 11801 ed. 2.2, June 2011 and EN 50173-1, May 2011 (DIN EN 50173-1). Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four.
Optional:
Visual coding, mechanical coding and lock protection.
