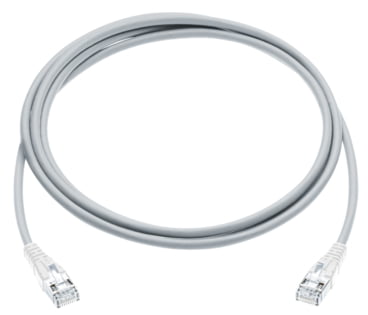

Patch Cord EL Cat. 6, U/UTP, 4P, PVC, gray, RJ45/u-RJ45/u, 1.0 m (R830719)

Patch Cord EL Cat. 6, U/UTP, 4P, PVC, gray, RJ45/u-RJ45/u, 1.0 m (R830719)

Patch Cord EL Cat. 6, U/UTP, 4P, PVC, gray, RJ45/u-RJ45/u, 1.0 m (R830719)

Cable identification: U/UTP

Outer jacket: PVC

Conductor diameter copper strand: AWG 26/7

Screened in pairs: no

Overall screen: no

Outer diameter: max. 4.7 mm

SKU: R830719 Category:

Technical Data

DESCRIPTIONVALUE/VALUE RANGE
Standard / norm

Compliant with Cat. 6 Class E (250 MHz) requirements: ISO/IEC 11801

Compliant with Cat. 6 component standard IEC 60603-7-4

Compliant with Cat. 6 component standard IEC 60603-7-5

Fulfilled the standard IEC 61935-2

Connector class

connector

Shielding connector (A)

unshielded

Connector type (A)

RJ45

Category connector (A)

Cat. 6

Shielding connector (B)

unshielded

Connector type (B)

RJ45

Category connector (B)

Cat. 6

Cable type

Patch cord

Cable category

Cat. 6

Shielding

U/UTP

Jacket material

PVC

Cable jacket characteristics

Cable, metal-free

Cable overall diameter4.7 mm
Conductor

AWG 26/7

Number of wires8
Stranding

4 pairs

Wire type

stranded wire

Mechanical Data

DESCRIPTIONVALUE/VALUE RANGE
Cable length1.0 m / 3 ft 3 in
Color Code RAL

7035 Light gray

Flexible cable, U/UTP, 4 x 2 x AWG 26/7, PVC,
7035 Light gray. Heavy-metal free in acc. with EU directives RoHS 2.

Mounted on both sides with

RJ45 connector compliant with Cat. 6 component standard. Key standard: IEC 60603-7 RJ45 category 6; IEC 60603-7-1 to 5. Strain-relief function in acc. with TIA TIA/EIA 568.2-D.

Complies with requirements of Cat. 6 for the establishing of transmission links of class E in acc. with ISO/IEC 11801 and EN 50173-1 (DIN EN 50173-1).

Optional:

Visual coding, mechanical coding and lock protection.
