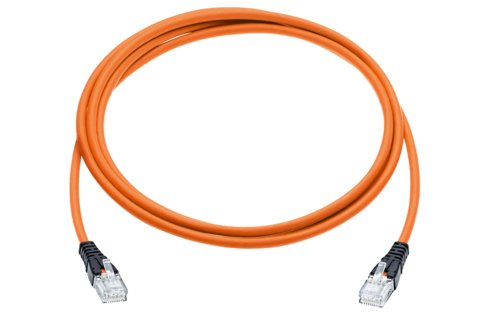

Patch Cord EL Cat. 6, U/UTP, 4P, PVC, orange, RJ45/u-RJ45/u, 2.0 m (R820350)

Patch Cord EL Cat. 6, U/UTP, 4P, PVC, orange, RJ45/u-RJ45/u, 2.0 m (R820350)

Patch Cord EL Cat. 6, U/UTP, 4P, PVC, orange, RJ45/u-RJ45/u, 2.0 m (R820350)

Cable identification: U/UTP

Outer jacket: PVC

Conductor diameter copper strand: AWG 26/7

Screened in pairs: no

Overall screen: no

Outer diameter: max. 4.7 mm

Артикул: R820350 Категорія:

Technical Data

DESCRIPTIONVALUE/VALUE RANGE
Standard / norm

Compliant with Cat. 6 Class E (250 MHz) requirements: ISO/IEC 11801

Compliant with Cat. 6 component standard IEC 60603-7-4

Compliant with Cat. 6 component standard IEC 60603-7-5

Fulfilled the standard IEC 61935-2

Connector class

connector

Shielding connector (A)

unshielded

Connector type (A)

RJ45

Category connector (A)

Cat. 6

Shielding connector (B)

unshielded

Connector type (B)

RJ45

Category connector (B)

Cat. 6

Cable type

Patch cord

Cable category

Cat. 6

Shielding

U/UTP

Jacket material

PVC

Cable jacket characteristics

Cable, metal-free

Cable overall diameter4.7 mm
Conductor

AWG 26/7

Number of wires8
Stranding

4 pairs

Wire type

stranded wire

Mechanical Data

DESCRIPTIONVALUE/VALUE RANGE
Cable length2.0 m / 6 ft 7 in
Color Code RAL

2003 Pastel orange

Flexible cable, U/UTP, 4 x 2 x AWG 26/7, PVC,
2003 Pastel orange. Heavy-metal free in acc. with EU directives RoHS 2.

Mounted on both sides with

RJ45 connector compliant with Cat. 6 component standard. Key standard: IEC 60603-7 RJ45 category 6; IEC 60603-7-1 to 5. Strain-relief function in acc. with TIA TIA/EIA 568.2-D.

Complies with requirements of Cat. 6 for the establishing of transmission links of class E in acc. with ISO/IEC 11801 and EN 50173-1 (DIN EN 50173-1).

Optional:

Visual coding, mechanical coding and lock protection.

TypeImageDescriptionProduct No.
Optional accessories

Color Coding RJ45 Connector, anthracite
R302342ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Color Coding RJ45 Connector, blue
R302343ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Color Coding RJ45 Connector, brown
R302344ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Color Coding RJ45 Connector, yellow
R302345ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Color Coding RJ45 Connector, gray
R302347ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Color Coding RJ45 Connector, green
R302348ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Color Coding RJ45 Connector, red
R302349ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Color Coding RJ45 Connector, violet
R302420ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Easy Latch RJ45 Connector, anthracite
R317100ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Easy Latch RJ45 Connector, blue
R317094ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Easy Latch RJ45 Connector, brown
R317095ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Easy Latch RJ45 Connector, yellow
R317096ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Easy Latch RJ45 Connector, gray
R317097ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Easy Latch RJ45 Connector, green
R317098ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Easy Latch RJ45 Connector, red
R317099ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Easy Latch RJ45 Connector, violet
R317093ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Splash Sleeve IP54, transparent
R306064ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Coding "A" for RJ45 Connectors, anthracite
R25432ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Coding "B" for RJ45 Connectors, white
R25677ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Safe Clip
R304807ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Patch Guard RJ45
R313814ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

R&MinteliPhy RFID clip pair RJ45 (10 pairs)
R809348ADD TO WISH LISTREMOVE FROM WISH LIST
