Cable identification: U/UTP
Outer jacket: PVC
Conductor diameter copper strand: AWG 26/7
Screened in pairs: no
Overall screen: no
Outer diameter: max. 4.7 mm
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm |
Compliant with Cat. 6 Class E (250 MHz) requirements: ISO/IEC 11801 Compliant with Cat. 6 component standard IEC 60603-7-4 Compliant with Cat. 6 component standard IEC 60603-7-5 Fulfilled the standard IEC 61935-2 |
| Connector class |
connector |
| Shielding connector (A) |
unshielded |
| Connector type (A) |
RJ45 |
| Category connector (A) |
Cat. 6 |
| Shielding connector (B) |
unshielded |
| Connector type (B) |
RJ45 |
| Category connector (B) |
Cat. 6 |
| Cable type |
Patch cord |
| Cable category |
Cat. 6 |
| Shielding |
U/UTP |
| Jacket material |
PVC |
| Cable jacket characteristics |
Cable, metal-free |
| Cable overall diameter | 4.7 mm |
| Conductor |
AWG 26/7 |
| Number of wires | 8 |
| Stranding |
4 pairs |
| Wire type |
stranded wire |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 1.0 m / 3 ft 3 in |
| Color Code RAL |
1021 Rape yellow |

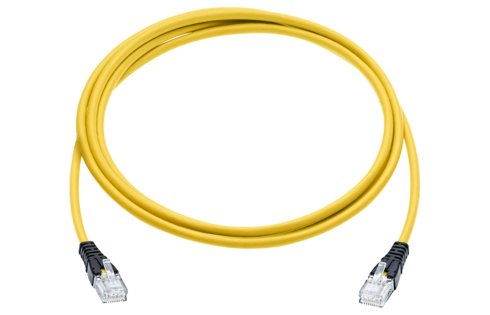

Flexible cable, U/UTP, 4 x 2 x AWG 26/7, PVC,
1021 Rape yellow. Heavy-metal free in acc. with EU directives RoHS 2.
Mounted on both sides with
RJ45 connector compliant with Cat. 6 component standard. Key standard: IEC 60603-7 RJ45 category 6; IEC 60603-7-1 to 5. Strain-relief function in acc. with TIA TIA/EIA 568.2-D.
Complies with requirements of Cat. 6 for the establishing of transmission links of class E in acc. with ISO/IEC 11801 and EN 50173-1 (DIN EN 50173-1).
Optional:
Visual coding, mechanical coding and lock protection.
