Cable identification: U/FTP
Outer jacket: LSZH
Conductor diameter copper strand: AWG 26/7
Screened in pairs: AL/foil
Overall screen: no
Outer diameter: max. 6.5 mm
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm | Compliant with Cat. 6A ISO, Class EA (500 MHz) requirements: ISO/IEC 11801 Complies with Category 6A ISO requirements of the standard ISO/IEC 11801 Complies with Category 6A ISO requirements of the standard EN 50173-1 Complies with Category 6A ISO requirements of the standard TIA/EIA 568.2-D Compliant with Cat. 6A ISO component standards IEC 60603-7-51 Fulfilled the standard IEC 61935-2 |
| Connector class | connector |
| Shielding connector (A) | shielded |
| Connector type (A) | RJ45 |
| Category connector (A) | Cat. 6A ISO |
| Shielding connector (B) | shielded |
| Connector type (B) | RJ45 |
| Category connector (B) | Cat. 6A ISO |
| Cable type | Patch cord |
| Cable category | Cat. 6A ISO |
| Shielding | U/FTP |
| Jacket material | LSZH |
| Cable jacket characteristics | Cable, metal-free Zero-halogen |
| Cable overall diameter | 6.5 mm |
| Conductor | AWG 26/7 |
| Number of wires | 8 |
| Stranding | 4 pairs |
| Wire type | stranded wire |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 2.0 m / 6 ft 7 in |
| Color Code RAL | 1021 Rape yellow |

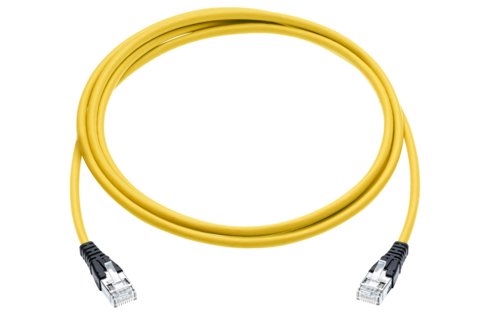

Flexible cable, U/FTP, 4 x 2 x AWG 26/7, LSZH,
1021 Rape yellow. Low-smoke in acc. with IEC 61034 and halogen-free in acc. with IEC 60754-1. Halogen-free and heavy-metal free in acc. with EU directives RoHS 2.
Mounted on both sides with
RJ45 connector compliant with Cat. 6A ISO component standard: IEC 60603-7-51 RJ45 category 6A ISO (500 MHz), shielded. Strain-relief function in acc. with TIA 568-C.
For the setting up of transmission channels of Class EA with up to 4 plugged connections acc. to ISO/IEC 11801 ed. 2.2, June 2011, EN 50173-1, May 2011 (DIN EN 50173-1). Complies with Category 6A ISO requirements of the standards ISO/IEC 11801 ed. 2.2, June 2011, EN 50173-1 May 2011, as well as TIA 568-C.2, interoperable and backwards compatible with Category 6 and Category 5e. Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz.
Optional:
Visual coding, mechanical coding and lock protection.
