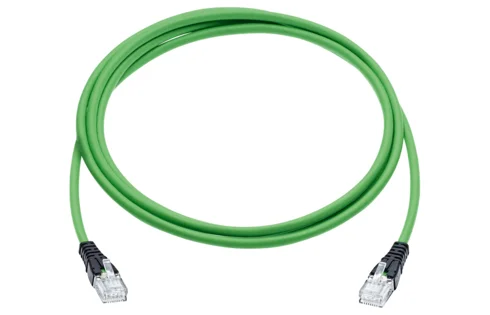

Patch Cord EL Cat. 6A, U/UTP, 4P, LSZH, green, RJ45/u-RJ45/u, 1.0 m (R820401)

Patch Cord EL Cat. 6A, U/UTP, 4P, LSZH, green, RJ45/u-RJ45/u, 1.0 m (R820401)

Patch Cord EL Cat. 6A, U/UTP, 4P, LSZH, green, RJ45/u-RJ45/u, 1.0 m (R820401)

Cable identification: U/UTP

Outer jacket: LSZH

Conductor diameter copper strand: AWG 26/7

Screened in pairs: no

Overall screen: no

Outer diameter: max. 6.5 mm

Артикул: R820401 Категорія:

Technical Data

DESCRIPTIONVALUE/VALUE RANGE
Standard / norm

Compliant with Cat. 6A ISO, Class EA (500 MHz) requirements: ISO/IEC 11801

Complies with Category 6A ISO requirements of the standard ISO/IEC 11801

Complies with Category 6A ISO requirements of the standard EN 50173-1

Complies with Category 6A ISO requirements of the standard TIA/EIA 568.2-D

Compliant with Cat.6A ISO component standards IEC 60603-7-41

Fulfilled the standard IEC 61935-2

Connector class

connector

Shielding connector (A)

unshielded

Connector type (A)

RJ45

Category connector (A)

Cat. 6A ISO

Shielding connector (B)

unshielded

Connector type (B)

RJ45

Category connector (B)

Cat. 6A ISO

Cable type

Patch cord

Shielding

U/UTP

Jacket material

LSZH

Cable jacket characteristics

Cable, metal-free

Zero-halogen

Cable overall diameter6.5 mm
Conductor

AWG 26/7

Number of wires8
Stranding

4 pairs

Wire type

stranded wire

Mechanical Data

DESCRIPTIONVALUE/VALUE RANGE
Cable length1.0 m / 3 ft 3 in
Color Code RAL

6029 Mint green

Flexible cable, U/UTP, 4 x 2 x AWG 26/7, LSZH,
6029 Mint green. Low-smoke in acc. with IEC 61034 and halogen-free in acc. with IEC 60754-1. Halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

Mounted on both sides with

Optional:

Visual coding, mechanical coding and lock protection.
