Cable identification: U/UTP
Outer jacket: LSZH
Conductor diameter copper strand: AWG 26/7
Screened in pairs: no
Overall screen: no
Outer diameter: max. 6.5 mm
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm | Compliant with Cat. 6A ISO, Class EA (500 MHz) requirements: ISO/IEC 11801 Complies with Category 6A ISO requirements of the standard ISO/IEC 11801 Complies with Category 6A ISO requirements of the standard EN 50173-1 Complies with Category 6A ISO requirements of the standard TIA/EIA 568.2-D Compliant with Cat.6A ISO component standards IEC 60603-7-41 Fulfilled the standard IEC 61935-2 |
| Connector class | connector |
| Shielding connector (A) | unshielded |
| Connector type (A) | RJ45 |
| Category connector (A) | Cat. 6A ISO |
| Shielding connector (B) | unshielded |
| Connector type (B) | RJ45 |
| Category connector (B) | Cat. 6A ISO |
| Cable type | Patch cord |
| Shielding | U/UTP |
| Jacket material | LSZH |
| Cable jacket characteristics | Cable, metal-free Zero-halogen |
| Cable overall diameter | 6.5 mm |
| Conductor | AWG 26/7 |
| Number of wires | 8 |
| Stranding | 4 pairs |
| Wire type | stranded wire |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 1.0 m / 3 ft 3 in |
| Color Code RAL | 2003 Pastel orange |

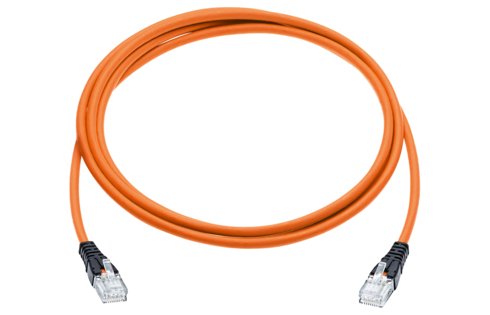

Flexible cable, U/UTP, 4 x 2 x AWG 26/7, LSZH,
2003 Pastel orange. Low-smoke in acc. with IEC 61034 and halogen-free in acc. with IEC 60754-1. Halogen-free and heavy-metal free in acc. with EU directives RoHS 2.
Mounted on both sides with
Optional:
Visual coding, mechanical coding and lock protection.
