Cable identification: U/UTP
Outer jacket: LSZH
Conductor diameter copper strand: AWG 26/7
Screened in pairs: no
Overall screen: no
Outer diameter: max. 6.5 mm
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm |
Compliant with Cat. 6A ISO, Class EA (500 MHz) requirements: ISO/IEC 11801 Complies with Category 6A ISO requirements of the standard ISO/IEC 11801 Complies with Category 6A ISO requirements of the standard EN 50173-1 Complies with Category 6A ISO requirements of the standard TIA/EIA 568.2-D Compliant with Cat.6A ISO component standards IEC 60603-7-41 Fulfilled the standard IEC 61935-2 |
| Connector class |
connector |
| Shielding connector (A) |
unshielded |
| Connector type (A) |
RJ45 |
| Category connector (A) |
Cat. 6A ISO |
| Shielding connector (B) |
unshielded |
| Connector type (B) |
RJ45 |
| Category connector (B) |
Cat. 6A ISO |
| Cable type |
Patch cord |
| Shielding |
U/UTP |
| Jacket material |
LSZH |
| Cable jacket characteristics |
Cable, metal-free Zero-halogen |
| Cable overall diameter | 6.5 mm |
| Conductor |
AWG 26/7 |
| Number of wires | 8 |
| Stranding |
4 pairs |
| Wire type |
stranded wire |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 2.0 m / 6 ft 7 in |
| Color Code RAL |
2003 Pastel orange |

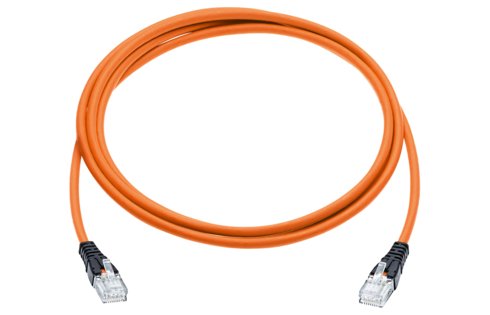

Flexible cable, U/UTP, 4 x 2 x AWG 26/7, LSZH,
2003 Pastel orange. Low-smoke in acc. with IEC 61034 and halogen-free in acc. with IEC 60754-1. Halogen-free and heavy-metal free in acc. with EU directives RoHS 2.
Mounted on both sides with
Optional:
Visual coding, mechanical coding and lock protection.
