Patch cord FO, FC-Simplex APC 8° Grade C - FC-Simplex APC 8° Grade C, Singlemode OS2 G.652.D, Simplex 3.0mm, Eca (LSZH), 2m (R30907)

Patch cord FO, FC-Simplex APC 8° Grade C - FC-Simplex APC 8° Grade C,  Singlemode OS2 G.652.D, Simplex 3.0mm, Eca (LSZH), 2m (R30907)

Patch cord FO, FC-Simplex APC 8° Grade C - FC-Simplex APC 8° Grade C, Singlemode OS2 G.652.D, Simplex 3.0mm, Eca (LSZH), 2m (R30907)

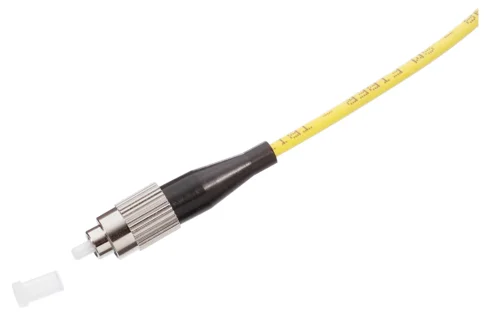

Both sides fitted with FC APC 8° connector (small key).
Fiber: SM E9/125 G.652.D/G.657.A1 (OS1, OS2).
Cable: Ø 3.0 mm, yellow.

Артикул: R30907 Категорія:
Mechanical Data

Color

yellow

Cable length

2 m

Technical Data

Patch cord type

simplex

Conductor type FO

tight buffer

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

1

Number of connectors (B)

1

Cable type

Patch cord, polarity A-B

Jacket material

LSZH

Cable jacket characteristics

Cable, metal-free

flame retardant

Cable overall diameter

Ø 3.0 mm (±0.15)

Connector type (A)

FC

Connector type (B)

FC

Connector color (A)

metallic

Connector color (B)

metallic

Polishing plug (A)

APC 8°

Polishing plug (B)

APC 8°

Protection class IP (A)

IP 20

Protection class IP (B)

IP 20

Return loss grade RL (A)

1

Return loss grade RL (B)

1

Attenuation grade IL (A)

C

Attenuation grade IL (B)

C

Connector class

connector

Patch cord with LSZH jacket, Ø 3.0 mm, yellow, singlemode G.652.D/G.657.A1 9/125 µm (OS1, OS2), length .
Mounted on both sides with FC connectors (small key) in acc. with IEC 61754-4. Zirconia (ceramic) ferrule with an angled polish APC 8° endface geometry, connectors tuned in accordance with IEC 61755-3-2 andqualified in acc. with IEC 61753-1 for category C (controlled environment). Nickel-coated connector housing, material brass, green strain relief and plastic dust cover.
Optical specifications (random mated):
Performance acc. to IEC 61753-1 (Table A.12):
Insertionloss (IL) Grade C for 97% of the tested specimen: = 0.50 dB / typical = 0.25 dB
Return loss (RL) Grade 1: = 60 dB
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 500 mating cycles Pull-out force patch cord: = 100 N
