Patch cord FO, FC-Simplex PC/UPC Grade C - FC-Simplex PC/UPC Grade C, Singlemode OS2 G.652.D, Simplex 3.0mm, Eca (LSZH), 2m (R30902)

Patch cord FO, FC-Simplex PC/UPC Grade C - FC-Simplex PC/UPC Grade C,  Singlemode OS2 G.652.D, Simplex 3.0mm, Eca (LSZH), 2m (R30902)

Patch cord FO, FC-Simplex PC/UPC Grade C - FC-Simplex PC/UPC Grade C, Singlemode OS2 G.652.D, Simplex 3.0mm, Eca (LSZH), 2m (R30902)

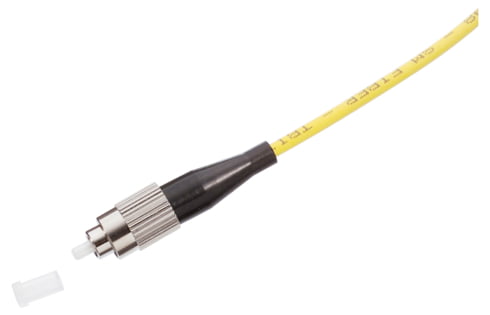

Both sides fitted with FC PC connector (wide key).
Fiber: SM E9/125 G.652.D/G.657.A1 (OS1, OS2).
Cable: Ø 3.0 mm, yellow.

Артикул: R30902 Категорія:
Mechanical Data

Color

yellow

Cable length

2 m

Technical Data

Patch cord type

simplex

Conductor type FO

tight buffer

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

1

Number of connectors (B)

1

Cable type

Patch cord, polarity A-B

Jacket material

LSZH

Cable jacket characteristics

Cable, metal-free

flame retardant

Cable overall diameter

Ø 3.0 mm (±0.15)

Connector type (A)

FC

Connector type (B)

FC

Connector color (A)

metallic

Connector color (B)

metallic

Polishing plug (A)

PC

Polishing plug (B)

PC

Protection class IP (A)

IP 20

Protection class IP (B)

IP 20

Return loss grade RL (A)

2

Return loss grade RL (B)

2

Attenuation grade IL (A)

C

Attenuation grade IL (B)

C

Connector class

connector

Patch cord with LSZH jacket, Ø 3.0 mm, yellow, singlemode G.652.D/G.657.A1 9/125 µm (OS1, OS2), length .
Mounted on both sides with FC connectors (wide key) in acc. with IEC 61754-4. Zirconia (ceramic) ferrule with a PC polished endface geometry, connectors tuned in accordance with IEC 61755-3-1 and qualified in acc. with IEC 61753-1 for category C (controlled environment). Nickel-coated connector housing, material brass, blue strain relief and plastic dust cover.
Optical specifications (random mated):
Performance acc. to IEC 61753-1 (Table A.12):
Insertion loss (IL) Grade C for 97% of the tested specimen: = 0.50 dB / typical = 0.25 dB
Return loss (RL) Grade 2: = 45 dB
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 500 mating cycles Pull-out force patch cord: = 100 N
