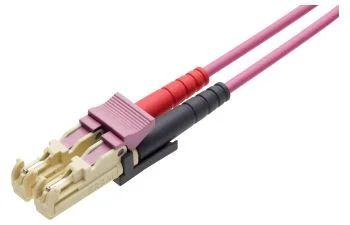

Patch cord FO, E-2000-Compact PC/UPC Grade Bm - E-2000-Compact PC/UPC Grade Bm, Multimode OM4 (G50), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 3m (R826590)

Patch cord FO, E-2000-Compact PC/UPC Grade Bm - E-2000-Compact PC/UPC Grade Bm, Multimode OM4 (G50), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 3m (R826590)

Both sides fitted with one E-2000™-Compact PC connector.

Connector color: beige.

Lever color: heather violet.

Fiber: MM G50/125 (OM4), bend-optimized.

Cable: F8 2.7x5.5 mm, heather violet.

Артикул: R826590 Категорія:

Scope of supply

E-2000 Compact Rangierkabel werden als Simplex Stecker assembliert. Duplex Clip und Hebel beiliegend.

Mechanical Data

Color

heather violet

Cable length

3 m

Technical Data

Conductor type FO

tight buffer

Fiber diameter

G50 / 125 µm

Number of connectors (A)

1

Number of connectors (B)

1

Cable type

Patch cord, polarity A-B

Jacket material

LSZH

Connector type (A)

E-2000™-Compact

Connector type (B)

E-2000™-Compact

Connector color (A)

beige

Connector color (B)

beige

Lever- / frame-coding (A)

Color

Lever color (A)

heather violet

Lever- / frame-coding (B)

Color

Lever color (B)

heather violet

Polishing plug (A)

PC

Polishing plug (B)

PC

Protection class IP (A)

IP 20

Protection class IP (B)

IP 20

Return loss grade RL (A)

3

Return loss grade RL (B)

3

Attenuation grade IL (A)

Bm

Attenuation grade IL (B)

Bm

Connector class

connector

Patch cord with LSZH jacket, F8 2.7x5.5 mm, heather violet (magenta), multimode G50 50/125 µm (OM4), bend-optimized, length .
Mounted on both sides with E-2000™-Compact (LSHRJ) connectors in accordance with IEC 61754-15 and EN 186270. Zirconia (ceramic) ferrule with a PC polished endface geometry, connectors qualified in acc. with IEC 61753-1 for category C (controlled environment). Beige connector housing (multimode) and turquoise duplex lever, material PBT / UL 94 V-0, 1 x black and 1 x red strain relief, material TPE / UL 94 V-0, black duplex clip, material PBT+ASA / UL 94 V-0 and silver-colored metal dust shutter.
Optical specifications (random mated):
Performance:
Insertion loss (IL) Grade Bm for 100% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.15 dB
Return loss (RL) Grade 3: ≥ 35 dB
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 1000 mating cycles Pull-out force patch cord: ≥ 100 N (per connector)
