Patch cord FO, SC-Duplex PC/UPC Grade C - SC-Duplex PC/UPC Grade C, Singlemode OS2 G.657.A2, Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 1m (R818731)

Name: Patch cord FO, SC-Duplex PC/UPC Grade C - SC-Duplex PC/UPC Grade C, Singlemode OS2 G.657.A2, Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 1m (R818731) - ДП "Сінергія"
SKU: R818731

Patch cord FO, SC-Duplex PC/UPC Grade C - SC-Duplex PC/UPC Grade C, Singlemode OS2 G.657.A2, Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 1m (R818731)

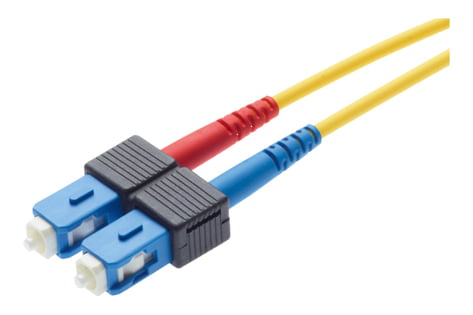

Both sides fitted with one SC-Duplex PC connector.
Connector color: blue.
Fiber: SM E9/125 G.652.D/G.657.A1 (OS1, OS2).
Cable: F8 2.7x5.5 mm, yellow.

Артикул: R818731 Категорія: Misc

Mechanical Data

Color	yellow
Cable length	1 m

Technical Data

Fiber type	Singlemode (SM)
Fiber diameter	n.a.
Number of connectors (A)	2
Number of connectors (B)	2
Cable type	Patch cord (duplex), polarity A-B
Jacket material	LSZH
Cable jacket characteristics	Kabel metallfrei halogenfrei falmmwidrig
Cable overall diameter	2.7 x 5.4 mm
Connector type (A)	SC-Duplex
Connector type (B)	SC-Duplex
Connector color (A)	blue
Lever- / frame-coding (A)	Color
Lever- / frame-coding (B)	Color
Lever color (B)	black
Polishing plug (A)	PC
Polishing plug (B)	PC
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss grade RL (A)	2
Return loss grade RL (B)	2
Attenuation grade IL (A)	C
Attenuation grade IL (B)	C
Connector class	connector
