Patch cord FO, LC-Duplex PC/UPC Grade Bm - LC-Duplex PC/UPC Grade Bm, Multimode OM4 (G50), Duplex Figur 8 (2.0 x 4.2), Eca (LSZH),2m (R826515)

Name: Patch cord FO, LC-Duplex PC/UPC Grade Bm - LC-Duplex PC/UPC Grade Bm, Multimode OM4 (G50), Duplex Figur 8 (2.0 x 4.2), Eca (LSZH),2m (R826515) - ДП "Сінергія"
SKU: R826515

Patch cord FO, LC-Duplex PC/UPC Grade Bm - LC-Duplex PC/UPC Grade Bm, Multimode OM4 (G50), Duplex Figur 8 (2.0 x 4.2), Eca (LSZH),2m (R826515)

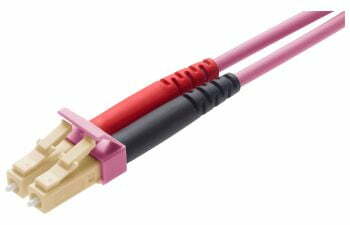

Both sides fitted with LC-Duplex PC connector.

Connector color: beige.

Lever color: heather violet.

Fiber: MM G50/125 (OM4),bend-optimized.

Cable: F8 2.0x4.1 mm, heather violet.

Артикул: R826515 Категорія: LC-Duplex

Mechanical Data

Color	heather violet
Cable length	2 m

Technical Data

Patch cord type	duplex figure 8
Conductor type FO	tight buffer
Fiber type	Multimode OM4
Fiber class	OM4
Fiber diameter	G50 / 125 µm
Number of connectors (A)	1
Number of connectors (B)	1
Cable type	Patch cord, polarity A-B
Cable design	I-V(ZN)H
Jacket material	LSZH
Cable jacket characteristics	Cable, metal-free zero-halogen flame retardant low smoke
Cable overall diameter	F8 2.0 x 4.1 mm (±0.15)
Connector type (A)	LC-Duplex
Connector type (B)	LC-Duplex
Connector color (A)	beige
Connector color (B)	beige
Lever- / frame-coding (A)	Color
Lever color (A)	heather violet
Lever- / frame-coding (B)	Color
Lever color (B)	heather violet
Polishing plug (A)	PC
Polishing plug (B)	PC
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss grade RL (A)	3
Return loss grade RL (B)	3
Attenuation grade IL (A)	Bm
Attenuation grade IL (B)	Bm
Connector class	connector
CPR classification	Eca
Standard	LC connector acc. to IEC 61754-20
