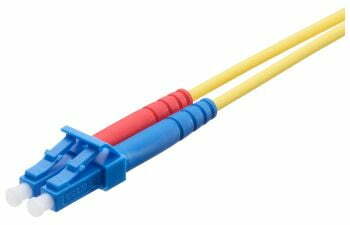

Name: Patch cord FO, LC-Duplex PC/UPC Grade C - LC-Duplex PC/UPC Grade C, Singlemode OS2 G.657.A2, Duplex Figur 8 (2.0 x 4.2), Eca (LSZH), 1m (R817668) - ДП "Сінергія"
SKU: R817668

Patch cord type	duplex figure 8
Conductor type FO	tight buffer
Fiber type	Singlemode (SM)
Fiber class	G.657.A2 (covers G.652.D, G.657.A1+B2, OS1, OS2)
Fiber diameter	E09 / 125 µm
Number of connectors (A)	1
Number of connectors (B)	1
Cable type	Patch cord, polarity A-A
Cable design	I-V(ZN)H
Jacket material	LSZH
Cable jacket characteristics	Cable, metal-free zero-halogen flame retardant low smoke
Cable overall diameter	F8 2.0 x 4.1 mm (±0.15)
Connector type (A)	LC-Duplex
Connector type (B)	LC-Duplex
Connector color (A)	blue
Connector color (B)	blue
Color (B1)	blue
Lever- / frame-coding (A)	Color
Lever color (A)	blue
Lever- / frame-coding (B)	Color
Lever color (B)	blue
Polishing plug (A)	PC
Polishing plug (B)	PC
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss grade RL (A)	2
Return loss grade RL (B)	2
Attenuation grade IL (A)	C
Attenuation grade IL (B)	C
Connector class	connector
CPR classification	Eca
Standard	LC connector acc. to IEC 61754-20

Color	yellow
Cable length	1 m

Patch cord FO, LC-Duplex PC/UPC Grade C - LC-Duplex PC/UPC Grade C, Singlemode OS2 G.657.A2, Duplex Figur 8 (2.0 x 4.2), Eca (LSZH), 1m (R817668)

Patch cord FO, LC-Duplex PC/UPC Grade C - LC-Duplex PC/UPC Grade C, Singlemode OS2 G.657.A2, Duplex Figur 8 (2.0 x 4.2), Eca (LSZH), 1m (R817668)
