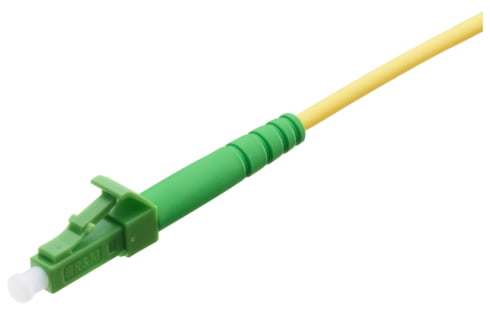

Both sides fitted with one LC APC 8° connector.
Connector color: green.
Lever color: green.
Fiber: SM E9/125 G.652.D/G.657.A1 (OS1, OS2).
Cable: Ø 2.0 mm, yellow.
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm |
LC connector acc. to IEC 61754-20 |
| Protection class IP |
IP 20 |
| Connector class |
connector |
| Protection class IP (A) |
IP 20 |
| Number of connectors (A) | 1 |
| Protection class IP (B) |
IP 20 |
| Number of connectors (B) | 1 |
| Cable type |
Patch cord, polarity A-B |
| Jacket material |
LSZH |
| Cable jacket characteristics |
Cable, metal-free Zero-halogen Flame-retardant |
| Cable overall diameter | Ø 2.0 mm (±0.10) |
| Connector type (A) |
LC |
| Polishing plug (A) |
APC 8° |
| Attenuation grade IL (A) | C |
| Return loss grade RL (A) | 1 |
| Connector color (A) |
green |
| Lever- / frame-coding (A) |
Color |
| Lever color (A) |
green |
| Connector type (B) |
LC |
| Polishing plug (B) |
APC 8° |
| Attenuation grade IL (B) | C |
| Return loss grade RL (B) | 1 |
| Connector color (B) |
green |
| Lever- / frame-coding (B) |
Color |
| Lever color (B) |
green |
| Fiber type |
singlemode (SM) |
| Fiber class |
G.652.D + G.657.A1 (OS1, OS2) |
| Conductor type |
tight buffer |
| Fiber diameter |
E9 / 125 µm |
| Patch cord type |
simplex |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 5.0 m / 16 ft |
| Color |
yellow |
| Type | Image | Description | Product No. | |
|---|---|---|---|---|
| Optional accessories |
|
Boot 90° R30 |
R505756 | ADD TO WISH LISTREMOVE FROM WISH LIST |
| Optional accessories |
|
Color Clip LC Connector, green |
R802925 | ADD TO WISH LISTREMOVE FROM WISH LIST |
| Optional accessories |
|
Color Clip LC Connector, blue |
R802926 | ADD TO WISH LISTREMOVE FROM WISH LIST |
| Optional accessories |
|
Color Clip LC Connector, turquoise |
R802927 | ADD TO WISH LISTREMOVE FROM WISH LIST |
| Optional accessories |
|
Color Clip LC Connector, orange |
R802928 | ADD TO WISH LISTREMOVE FROM WISH LIST |
| Optional accessories |
|
Color Clip LC Connector, beige |
R802929 | ADD TO WISH LISTREMOVE FROM WISH LIST |
| Optional accessories |
|
Color Clip LC Connector, violet |
R802930 | ADD TO WISH LISTREMOVE FROM WISH LIST |
