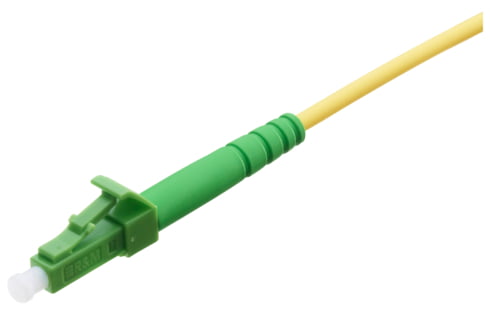

Patch cord FO, LC-Simplex APC 8° Grade C - LC-Simplex APC 8° Grade C, Singlemode OS2 G.657.A2, Simplex 3.0mm, Eca (LSZH), 1m (R836736)

Name: Patch cord FO, LC-Simplex APC 8° Grade C - LC-Simplex APC 8° Grade C, Singlemode OS2 G.657.A2, Simplex 3.0mm, Eca (LSZH), 1m (R836736) - ДП "Сінергія"
SKU: R836736

Patch cord FO, LC-Simplex APC 8° Grade C - LC-Simplex APC 8° Grade C, Singlemode OS2 G.657.A2, Simplex 3.0mm, Eca (LSZH), 1m (R836736)

Fiber: SM E9/125 G.657.A2 (OS1, OS2)

Артикул: R836736 Категорія: Misc

Mechanical Data

Color	yellow
Cable length	1 m

Technical Data

Patch cord type	simplex
Conductor type FO	tight buffer
Fiber type	Singlemode (SM)
Fiber class	G.657.A2 (covers G.652.D, G.657.A1+B2, OS1, OS2)
Fiber diameter	E09 / 125 µm
Number of connectors (A)	1
Number of connectors (B)	1
Cable type	Patch cord, polarity A-A
Cable design	I-V(ZN)H
Jacket material	LSZH
Cable jacket characteristics	zero-halogen Cable, metal-free low smoke flame retardant
Cable overall diameter	Ø 2.0 mm (±0.10)
Connector type (A)	LC
Connector type (B)	LC
Connector color (A)	green
Connector color (B)	green
Color (B1)	green
Lever- / frame-coding (A)	Color
Lever color (A)	green
Lever- / frame-coding (B)	Color
Lever color (B)	green
Polishing plug (A)	APC 8°
Polishing plug (B)	APC 8°
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss grade RL (A)	1
Return loss grade RL (B)	1
Attenuation grade IL (A)	C
Attenuation grade IL (B)	C
Connector class	connector
Standard	LC connector acc. to IEC 61754-20
