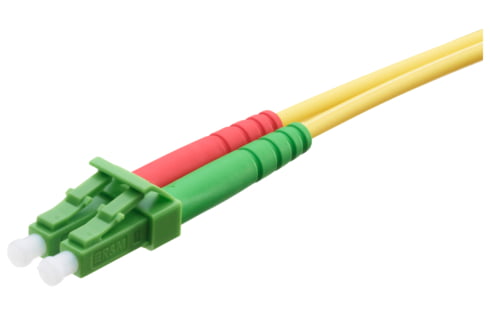

Patch Cord LC-Duplex APC - LC-Duplex APC, green/green, G.657, C/1, F8 2.0x4.1mm, 3 m (R802898)

Patch Cord LC-Duplex APC - LC-Duplex APC, green/green, G.657, C/1, F8 2.0x4.1mm, 3 m (R802898)

Patch Cord LC-Duplex APC - LC-Duplex APC, green/green, G.657, C/1, F8 2.0x4.1mm, 3 m (R802898)

Both sides fitted with one LC-Duplex APC 8° connector.

Connector color: green.

Lever color: green.

Fiber: SM E9/125 G.657.A1, A2 and B2 (OS1, OS2).

Cable: F8 2.0x4.1 mm, yellow.

Артикул: R802898 Категорія:

Both sides fitted with one LC-Duplex APC 8° connector.

Connector color: green.

Lever color: green.

Fiber: SM

Cable: F8 2.0x4.1 mm, yellow.

Technical Data

DESCRIPTIONVALUE/VALUE RANGE
Standard / norm

LC connector acc. to IEC 61754-20

Protection class IP

IP 20

Connector class

connector

Protection class IP (A)

IP 20

Number of connectors (A)1
Protection class IP (B)

IP 20

Number of connectors (B)1
Cable type

Patch cord, polarity A-B

Jacket material

LSZH

Cable jacket characteristics

Cable, metal-free

Zero-halogen

Flame-retardant

Cable overall diameterF8 2.0 x 4.1 mm (±0.15)
Connector type (A)

LC-Duplex

Polishing plug (A)

APC 8°

Attenuation grade IL (A)C
Return loss grade RL (A)1
Connector color (A)

green

Lever- / frame-coding (A)

Color

Lever color (A)

green

Connector type (B)

LC-Duplex

Polishing plug (B)

APC 8°

Attenuation grade IL (B)C
Return loss grade RL (B)1
Connector color (B)

green

Lever- / frame-coding (B)

Color

Lever color (B)

green

Fiber type

singlemode (SM)

Conductor type

tight buffer

Fiber diameter

E9 / 125 µm

Patch cord type

duplex figure 8

Mechanical Data

DESCRIPTIONVALUE/VALUE RANGE
Cable length3.0 m / 9 ft 10 in
Color

yellow

Patch cord with LSZH jacket, F8 2.0x4.1 mm, yellow, singlemode singlemode acc. to G.657.A1, A2 and B2 plus OS1 and OS2 (backward compatible to G.652.A - D), 9/125 µm, length
3m.

Mounted on both sides with LC-Duplex connectors in acc. with IEC 61754-20. Zirconia (ceramic) ferrule with an angled polish APC 8° endface geometry, connectors tuned in accordance with IEC 61755-3-2 and qualified in acc. with IEC 61753-1 for category U (uncontrolled environment). Green connector housing (singlemode), green duplex clip, material PC / UL 94 V-0, 1 x green and 1 x red strain relief, material TPE / UL 94 V-0 and white plastic dust cover.

Optical specifications (random mated):

Performance acc. to IEC 61753-1 (Table A.12):

  • Insertion loss (IL) Grade C for 97% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.25 dB

  • Return loss (RL) Grade 1: ≥ 60 dB

Mechanical specifications:

  • Mating cycles: delta IL < 0.2 dB after 500 mating cycles

  • Pull-out force patch cord: ≥ 100 N (per connector)

  • Optional:

    Visual coding, mechanical coding and lock protection.
