Both sides fitted with one LC-Duplex APC 8° connector.
Connector color: green.
Lever color: green.
Fiber: SM E9/125 G.657.A1, A2 and B2 (OS1, OS2).
Cable: F8 2.0x4.1 mm, yellow.
Both sides fitted with one LC-Duplex APC 8° connector.
Connector color: green.
Lever color: green.
Fiber: SM
Cable: F8 2.0x4.1 mm, yellow.
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm | LC connector acc. to IEC 61754-20 |
| Protection class IP | IP 20 |
| Connector class | connector |
| Protection class IP (A) | IP 20 |
| Number of connectors (A) | 1 |
| Protection class IP (B) | IP 20 |
| Number of connectors (B) | 1 |
| Cable type | Patch cord, polarity A-B |
| Jacket material | LSZH |
| Cable jacket characteristics | Cable, metal-free Zero-halogen Flame-retardant |
| Cable overall diameter | F8 2.0 x 4.1 mm (±0.15) |
| Connector type (A) | LC-Duplex |
| Polishing plug (A) | APC 8° |
| Attenuation grade IL (A) | C |
| Return loss grade RL (A) | 1 |
| Connector color (A) | green |
| Lever- / frame-coding (A) | Color |
| Lever color (A) | green |
| Connector type (B) | LC-Duplex |
| Polishing plug (B) | APC 8° |
| Attenuation grade IL (B) | C |
| Return loss grade RL (B) | 1 |
| Connector color (B) | green |
| Lever- / frame-coding (B) | Color |
| Lever color (B) | green |
| Fiber type | singlemode (SM) |
| Conductor type | tight buffer |
| Fiber diameter | E9 / 125 µm |
| Patch cord type | duplex figure 8 |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 5.0 m / 16 ft |
| Color | yellow |

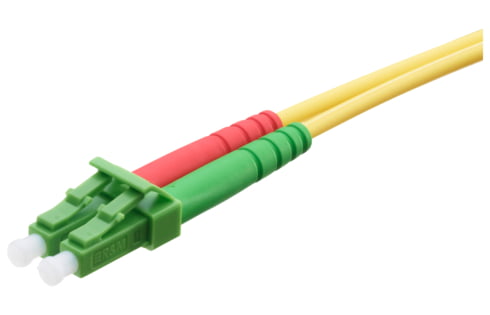

Patch cord with LSZH jacket, F8 2.0x4.1 mm, yellow, singlemode singlemode acc. to G.657.A1, A2 and B2 plus OS1 and OS2 (backward compatible to G.652.A - D), 9/125 µm, length
5m.
Mounted on both sides with LC-Duplex connectors in acc. with IEC 61754-20. Zirconia (ceramic) ferrule with an angled polish APC 8° endface geometry, connectors tuned in accordance with IEC 61755-3-2 and qualified in acc. with IEC 61753-1 for category U (uncontrolled environment). Green connector housing (singlemode), green duplex clip, material PC / UL 94 V-0, 1 x green and 1 x red strain relief, material TPE / UL 94 V-0 and white plastic dust cover.
Optical specifications (random mated):
Performance acc. to IEC 61753-1 (Table A.12):
Insertion loss (IL) Grade C for 97% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.25 dB
Return loss (RL) Grade 1: ≥ 60 dB
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 500 mating cycles
Pull-out force patch cord: ≥ 100 N (per connector)
Optional:
Visual coding, mechanical coding and lock protection.
