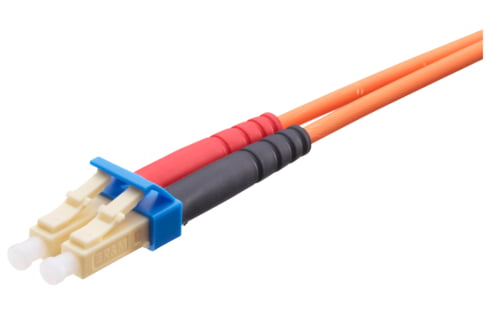

Patch cord FO, LC-Duplex PC/UPC Grade Bm - LC-Duplex PC/UPC Grade Bm, Multimode OM1 (G62.5), Duplex Figur 8 (2.0 x 4.2), Eca (LSZH), 5m (R308928)

Name: Patch cord FO, LC-Duplex PC/UPC Grade Bm - LC-Duplex PC/UPC Grade Bm, Multimode OM1 (G62.5), Duplex Figur 8 (2.0 x 4.2), Eca (LSZH), 5m (R308928) - ДП "Сінергія"
SKU: R308928

Patch cord FO, LC-Duplex PC/UPC Grade Bm - LC-Duplex PC/UPC Grade Bm, Multimode OM1 (G62.5), Duplex Figur 8 (2.0 x 4.2), Eca (LSZH), 5m (R308928)

Both sides fitted with LC-Duplex PC connector.

Connector color: beige.

Lever color: blue.

Fiber: MM G62.5/125 (OM1).

Cable: F8 2.0x4.1 mm, orange.

Артикул: R308928 Категорія: LC-Duplex

Mechanical Data

Color	orange
Cable length	5 m

Technical Data

Patch cord type	duplex figure 8
Conductor type FO	tight buffer
Fiber type	Multimode (MM)
Fiber class	OM1
Fiber diameter	G62.5 / 125 µm
Number of connectors (A)	1
Number of connectors (B)	1
Cable type	Patch cord, polarity A-B
Cable design	I-V(ZN)H
Jacket material	LSZH
Cable jacket characteristics	zero-halogen Cable, metal-free low smoke flame retardant
Cable overall diameter	F8 2.0 x 4.1 mm (±0.15)
Connector type (A)	LC-Duplex
Connector type (B)	LC-Duplex
Connector color (A)	beige
Connector color (B)	beige
Lever- / frame-coding (A)	Color
Lever color (A)	blue
Lever- / frame-coding (B)	Color
Lever color (B)	blue
Polishing plug (A)	PC
Polishing plug (B)	PC
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss grade RL (A)	3
Return loss grade RL (B)	3
Attenuation grade IL (A)	Bm
Attenuation grade IL (B)	Bm
Connector class	connector
CPR classification	Eca
Standard	LC connector acc. to IEC 61754-20
