Patch cord FO, LC-Duplex PC/UPC Grade Bm - LC-Duplex PC/UPC Grade Bm, Multimode OM4 (G50), Duplex Figur 8 (2.0 x 4.2), Eca (LSZH),2m (R802251)

Name: Patch cord FO, LC-Duplex PC/UPC Grade Bm - LC-Duplex PC/UPC Grade Bm, Multimode OM4 (G50), Duplex Figur 8 (2.0 x 4.2), Eca (LSZH),2m (R802251) - ДП "Сінергія"
SKU: R802251

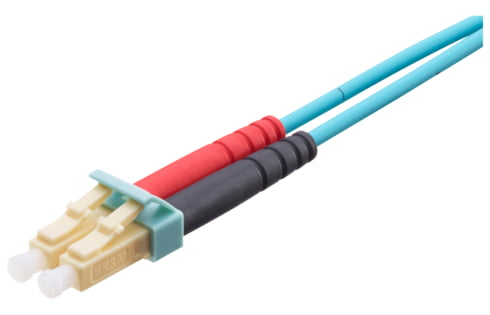

Patch cord FO, LC-Duplex PC/UPC Grade Bm - LC-Duplex PC/UPC Grade Bm, Multimode OM4 (G50), Duplex Figur 8 (2.0 x 4.2), Eca (LSZH),2m (R802251)

Both sides fitted with LC-Duplex PC connector.

Connector color: beige.

Lever color: turquoise.

Fiber: MM G50/125 (OM4), bend-optimized.

Cable: F8 2.0x4.1 mm, turquoise.

Артикул: R802251 Категорія: LC-Duplex

Mechanical Data

Color	turquoise/aqua
Cable length	2 m

Technical Data

Patch cord type	duplex figure 8
Conductor type FO	tight buffer
Fiber type	Multimode (MM)
Fiber class	OM4
Fiber diameter	G50 / 125 µm
Number of connectors (A)	1
Number of connectors (B)	1
Cable type	Patch cord, polarity A-B
Cable design	I-V(ZN)H
Jacket material	LSZH
Cable jacket characteristics	Cable, metal-free zero-halogen flame retardant low smoke
Cable overall diameter	F8 2.0 x 4.1 mm (±0.15)
Connector type (A)	LC-Duplex
Connector type (B)	LC-Duplex
Connector color (A)	beige
Connector color (B)	beige
Lever- / frame-coding (A)	Color
Lever color (A)	turquoise/aqua
Lever- / frame-coding (B)	Color
Lever color (B)	turquoise/aqua
Polishing plug (A)	PC
Polishing plug (B)	PC
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss grade RL (A)	3
Return loss grade RL (B)	3
Attenuation grade IL (A)	Bm
Attenuation grade IL (B)	Bm
Connector class	connector
CPR classification	Eca
Standard	LC connector acc. to IEC 61754-20
