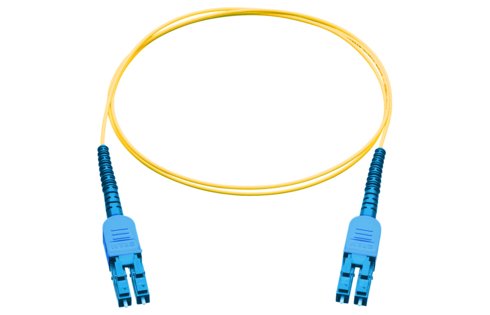

Patch cord FO, LC-QR Uniboot PC/UPC Grade C - LC-QR Uniboot PC/UPC Grade C, Singlemode OS2 G.657.A2, Simplex 1.4mm, Eca (LSZH), 5m (R846972)

Patch cord FO, LC-QR Uniboot PC/UPC Grade C - LC-QR Uniboot PC/UPC Grade  C, Singlemode OS2 G.657.A2, Simplex 1.4mm, Eca (LSZH), 5m (R846972)

Patch cord FO, LC-QR Uniboot PC/UPC Grade C - LC-QR Uniboot PC/UPC Grade C, Singlemode OS2 G.657.A2, Simplex 1.4mm, Eca (LSZH), 5m (R846972)

Both sides fitted with LC-QR Uniboot PC connector.

Connector color: blue.

Lever color: blue.

Fiber: SM E9/125 G.657A2 (OS2).

Cable: twinfiber cable, yellow.

Артикул: R846972 Категорія:
Mechanical Data

Color

yellow

Cable length

5 m

Technical Data

Fiber type

Singlemode (SM)

Number of connectors (A)

1

Number of connectors (B)

1

Cable type

Patch cord, polarity A-A

Jacket material

LSZH

Cable jacket characteristics

Cable, metal-free

zero-halogen

flame retardant

Cable overall diameter

Twin Fiber 1.4mm

Connector type (A)

LC-QR

Connector type (B)

LC-QR

Polishing plug (A)

PC

Polishing plug (B)

PC

Return loss grade RL (A)

2

Return loss grade RL (B)

2

Attenuation grade IL (A)

C

Attenuation grade IL (B)

C

Connector class

connector

Standard

LC connector acc. to IEC 61754-20

Patch cord with LSZH jacket, twinfiber 1.4mm, singlemode Fiber class.

Mounted on both sides with LC-QR connector, IEC 61754-20 compatible, Zirconia (ceramic) ferrule with a PC polished (0°) endface geometry, connectors qualified in acc. with IEC 61753-1 for category C (controlled environment),blue connector housing (singlemode), blue unlocking clip, material PC / UL 94 V-0, blue strain relief, material PP, white plastic dust shutter.

Performance :

Insertion loss (IL) Grade C for 97% of the tested specimen: ≤ 0.50 dB /typical ≤ 0.25 dB

Return loss (RL) Grade 2: ≥ 45 dB

Mechanical specifications:

Mating cycles: delta < 0.2 dB after 500 mating cycles

Pull-out force patch cord: ≥ 50 N
