Patch cord with LSZH jacket, Ø 3.0 mm, yellow, singlemode G.652.D/G.657.A1 9/125 µm (OS1, OS2), length .

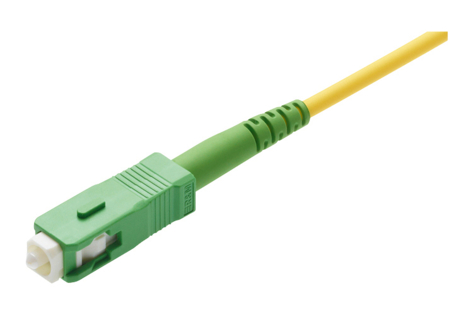

Mounted on both sides with SC connectors in acc. with IEC 61754-4. Zirconia (ceramic) ferrule with an angled polish APC 8° endface geometry, connectors tuned in accordance with IEC 61755-3-2 and qualified in acc. with IEC 61753-1 for category C (controlled environment). Green connector housing (singlemode), material PBT / UL 94 V-0, green strain relief, material TPE / UL 94 V-0 and plastic dust cover.
Optical specifications (random mated):
Performance acc. to IEC 61753-1 (Table A.12):
Insertion loss (IL) Grade C for 97% of the tested specimen: = 0.50 dB / typical = 0.25 dB
Return loss (RL) Grade 1: = 60 dB (typical = 80 dB)
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 500 mating cycles
Pull-out force patch cord: = 100 N
