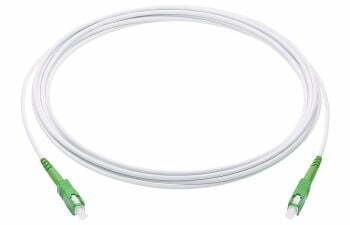

Patch Cord SC APC - SC APC, green, G.657, C/1, Ø 2.8mm, 5 m (R836366)

Patch Cord SC APC - SC APC, green, G.657, C/1, Ø 2.8mm, 5 m (R836366)

Patch Cord SC APC - SC APC, green, G.657, C/1, Ø 2.8mm, 5 m (R836366)

Both sides fitted with SC APC 8° connector.

Connector color: green.

Fiber: SM E9/125 G.657.A1, A2 and B2 (OS1, OS2).

Cable: Ø 2.8 mm, white.

Артикул: R836366 Категорія:
Environmental Characteristics

Operation temperature

-25 °C to +70 °C / -13 °F to +158 °F

Mechanical Data

Color

white

Cable length

5 m

Technical Data

Patch cord type

simplex

Conductor type FO

tight buffer

Fiber type

Singlemode (SM)

Fiber diameter

n.a.

Number of connectors (A)

1

Number of connectors (B)

1

Cable type

Patch cord, polarity A-B

Jacket material

LSZH

Cable jacket characteristics

Cable, metal-free

zero-halogen

flame retardant

Cable overall diameter

Ø 2.8 mm (±0.2)

Connector type (A)

SC

Connector type (B)

SC

Connector color (A)

green

Connector color (B)

green

Polishing plug (A)

APC 8°

Polishing plug (B)

APC 8°

Protection class IP (A)

IP 20

Protection class IP (B)

IP 20

Return loss grade RL (A)

1

Return loss grade RL (B)

1

Connector class

connector
