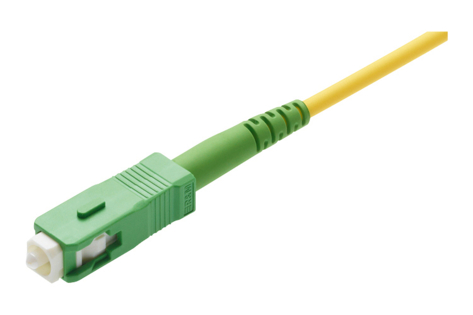

Patch cord with LSZH jacket, Ø 3.0 mm, yellow, singlemode singlemode acc. to G.657.A1, A2 and B2 plus OS1 and OS2 (backward compatible to G.652.A - D), 9/125 µm, length .
Mounted on both sides with SC connectors in acc. with IEC 61754-4. Zirconia (ceramic) ferrule with an angled polish APC 8° endface geometry,connectors tuned in accordance with IEC 61755-3-2 and qualified in acc. with IEC 61753-1 for category C (controlled environment). Green connector housing (singlemode), material PBT / UL 94 V-0, green strain relief, material TPE / UL 94 V-0 and plastic dust cover.
Optical specifications (random mated):
Performance acc. to IEC 61753-1 (Table A.12):
Insertion loss (IL) Grade C for 97% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.25 dB
Return loss (RL) Grade 1: ≥ 60 dB (typical ≥ 80 dB)
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 500 mating cycles Pull-out force patch cord: ≥ 100 N
