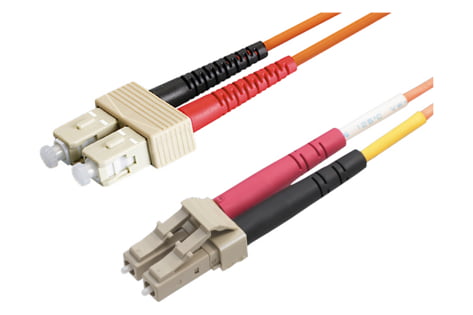

Patch cord FO, SC-Duplex PC/UPC Grade Bm - LC-Duplex PC/UPC Grade Bm, Multimode OM1 (G62.5), Duplex Figur 8 (2.0 x 4.2), Eca (LSZH), 3m (R308936)

Name: Patch cord FO, SC-Duplex PC/UPC Grade Bm - LC-Duplex PC/UPC Grade Bm, Multimode OM1 (G62.5), Duplex Figur 8 (2.0 x 4.2), Eca (LSZH), 3m (R308936) - ДП "Сінергія"
SKU: R308936

Patch cord FO, SC-Duplex PC/UPC Grade Bm - LC-Duplex PC/UPC Grade Bm, Multimode OM1 (G62.5), Duplex Figur 8 (2.0 x 4.2), Eca (LSZH), 3m (R308936)

Fitted with one SC-Duplex PC and one LC-Duplex PC connector.

Connector color SC-Duplex: beige.

Connector color LC-Duplex: beige.

Lever color LC-Duplex: blue.

Fiber: MM G62.5/125 (OM1).

Cable: F8 2.0x4.1 mm, orange.

Артикул: R308936 Категорія: Misc

Mechanical Data

Color	orange
Cable length	3 m

Technical Data

Patch cord type	duplex figure 8
Conductor type FO	tight buffer
Fiber type	Multimode (MM)
Fiber class	OM1
Fiber diameter	G62.5 / 125 µm
Number of connectors (A)	1
Number of connectors (B)	1
Cable type	Patch cord, polarity A-B
Jacket material	LSZH
Cable jacket characteristics	zero-halogen
Connector type (A)	SC-Duplex
Connector type (B)	LC-Duplex
Connector color (A)	beige
Connector color (B)	beige
Lever- / frame-coding (B)	Color
Lever color (B)	blue
Polishing plug (A)	PC
Polishing plug (B)	PC
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss grade RL (A)	3
Return loss grade RL (B)	3
Attenuation grade IL (A)	Bm
Attenuation grade IL (B)	Bm
Connector class	connector
