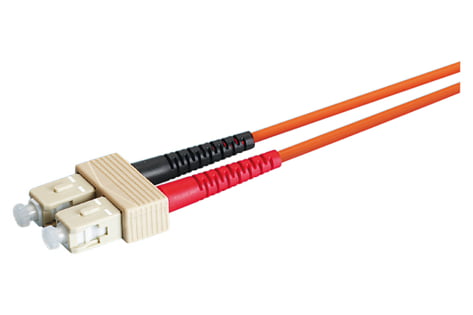

Fitted with one SC-Duplex PC and one SC-RJ PC connector.
Connector color SC-Duplex: beige.
Connector color SC-RJ: black.
Clip color SC-RJ: black.
Fiber: MM G62.5/125 (OM1).
Cable: F8 2.7x5.5 mm, orange.
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Protection class IP |
IP 20 |
| Connector class |
connector |
| Protection class IP (A) |
IP 20 |
| Number of connectors (A) | 1 |
| Protection class IP (B) |
IP 20 |
| Number of connectors (B) | 1 |
| Cable type |
Patch cord, polarity A-B |
| Jacket material |
LSZH |
| Cable jacket characteristics |
Flame-retardant |
| Cable overall diameter | F8 2.7 x 5.5 mm (±0.15) |
| Connector type (A) |
SC-Duplex |
| Polishing plug (A) |
PC |
| Attenuation grade IL (A) | Bm |
| Return loss grade RL (A) | 3 |
| Connector color (A) |
beige |
| Lever color (A) |
black |
| Connector type (B) |
SC-RJ |
| Polishing plug (B) |
PC |
| Attenuation grade IL (B) | Bm |
| Return loss grade RL (B) | 3 |
| Connector color (B) |
black |
| Lever- / frame-coding (B) |
Color |
| Lever color (B) |
black |
| Fiber type |
multimode (MM) |
| Fiber class |
OM1 |
| Conductor type |
tight buffer |
| Fiber diameter |
G62.5 / 125 µm |
| Patch cord type |
duplex figure 8 |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 1.0 m / 3 ft 3 in |
| Color |
orange |
Patch cord with LSZH jacket, F8 2.7x5.5 mm, orange, multimode G62.5 62.5/125 µm (OM1), length .
Mounted on one side with SC-Duplex connector in acc. with IEC 61754-4. Zirconia (ceramic) ferrule with a PC polished endface geometry, connector qualified in acc. with IEC 61753-1 for category C (controlled environment). Beige connector housing (multimode), material PBT / UL 94 V-0, beige duplex clip, 1 x black and 1 x red strain relief, material TPE / UL 94 V-0 and plastic dust cover.
Optical specifications (random mated):
Performance:
Insertion loss (IL) Grade Bm for 100% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.15 dB
Return loss (RL) Grade 3: ≥ 35 dB
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 500 mating cycles
Pull-out force patch cord: ≥ 100 N (per connector)
and one side with SC-RJ connector in acc. with IEC 61754-24. Zirconia (ceramic) ferrule with a PC polished endface geometry, connectors qualified in acc. with IEC 61753-1 for category C (controlled environment). Black connector housing (multimode), material PBT / UL 94 V-0, black coding clip (OM1), material PP halogen-free, 1 x black and 1 x red strain relief, material TPE / UL 94 V-0 and plastic dust cover.
Optical specifications (random mated):
Performance:
Insertion loss (IL) Grade Bm for 100% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.15 dB
Return loss (RL) Grade 3: ≥ 35 dB
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 500 mating cycles
Pull-out force patch cord: ≥ 100 N (per connector)
