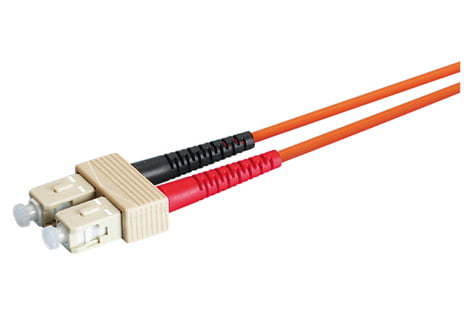

Patch cord with LSZH jacket, F8 2.7x5.5 mm, orange, multimode G50 50/125 µm (OM2), length .
Mounted on both sides with SC-Duplex connectors in acc. with IEC 61754-4. Zirconia (ceramic) ferrule with a PC polished endface geometry, connectors qualified in acc. with IEC 61753-1 for category C (controlled environment). Beige connector housing (multimode), material PBT / UL 94 V-0, black duplex clip, 1 x black and 1 x red strain relief, material TPE / UL 94 V-0 and plastic dust cover.
Optical specifications (random mated):
Performance:
Insertion loss (IL) Grade Bm for 100% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.15 dB
Return loss (RL) Grade 3: ≥ 35 dB
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 500 mating cycles Pull-out force patch cord: ≥ 100 N (per connector)
