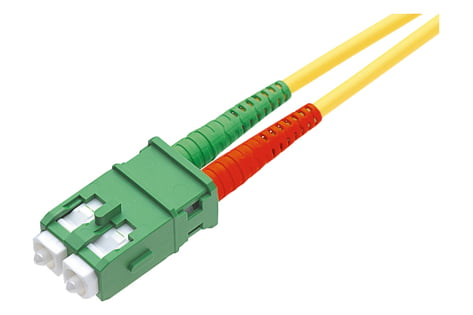

Both sides fitted with SC-RJ APC 8° connector.
Connector color: green.
Fiber: SM E9/125 G.652.D/G.657.A1 (OS1, OS2).
Cable: F8 2.7x5.5 mm, yellow.
Patch cord with LSZH jacket, F8 2.7x5.5 mm, yellow, singlemode G.652.D/G.657.A1 9/125 µm (OS1, OS2), length .
Mounted on both sides with SC-RJ connectors in acc. with IEC 61754-24. Zirconia (ceramic) ferrule with an angled polish APC 8° endface geometry, connectors tuned in accordance with IEC 61755-3-2 and qualified in acc. with IEC 61753-1 for category C (controlled environment). Green connector housing (singlemode), material PBT / UL 94V-0, 1 x green and 1 x red strain relief, material TPE / UL 94 V-0 and plastic dust cover.
Optical specifications (random mated):
Performance acc. to IEC 61753-1 (Table A.12):
Insertion loss (IL) Grade B for 97% of the tested specimen: = 0.25 dB / typical = 0.12 dB
Return loss (RL) Grade 1: = 65 dB (typical = 85 dB)
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 500 mating cycles
Pull-out force patch cord: = 100 N (per connector)
