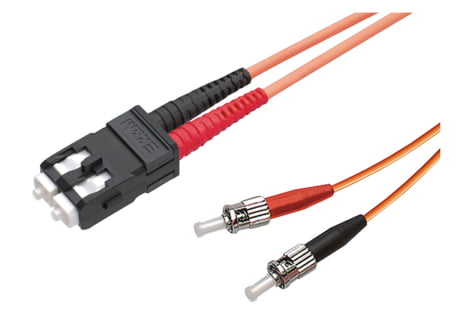

Patch cord FO, SC-RJ PC/UPC Grade Bm - ST-Simplex PC/UPC Grade Bm, Multimode OM1 (G62.5), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 5m (R30595)

Patch cord FO, SC-RJ PC/UPC Grade Bm - ST-Simplex PC/UPC Grade Bm,  Multimode OM1 (G62.5), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 5m (R30595)

Patch cord FO, SC-RJ PC/UPC Grade Bm - ST-Simplex PC/UPC Grade Bm, Multimode OM1 (G62.5), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 5m (R30595)

Fitted with one SC-RJ PC and two ST PC connectors.

Connector color SC-RJ: black.

Clip color SC-RJ: black.

Connector color ST: metallic.

Fiber: MM G62.5/125 (OM1).

Cable: F8 2.7x5.5 mm, orange.

Артикул: R30595 Категорія:
Mechanical Data

Color

orange

Cable length

5 m

Technical Data

Patch cord type

duplex figure 8

Conductor type FO

tight buffer

Fiber type

Multimode (MM)

Fiber class

OM1

Fiber diameter

G62.5 / 125 µm

Number of connectors (A)

1

Number of connectors (B)

2

Cable type

Patch cord, polarity A-B

Jacket material

LSZH

Cable jacket characteristics

Cable, metal-free

Connector type (A)

SC-RJ

Connector type (B)

ST

Connector color (A)

black

Connector color (B)

metallic

Lever- / frame-coding (A)

Color

Polishing plug (A)

PC

Polishing plug (B)

PC

Protection class IP (A)

IP 20

Protection class IP (B)

IP 20

Return loss grade RL (A)

3

Return loss grade RL (B)

3

Attenuation grade IL (A)

Bm

Attenuation grade IL (B)

Bm

Connector class

connector

Patch cord with LSZH jacket, F8 2.7x5.5 mm, orange, multimode G62.5 62.5/125 µm (OM1), length .

Mounted on one side with SC-RJ connector in acc. with IEC 61754-24. Zirconia (ceramic) ferrule with a PC polished endface geometry, connectors qualified in acc. with IEC 61753-1 for category C (controlled environment). Black connector housing (multimode), material PBT / UL 94 V-0, black coding clip (OM1), material PP halogen-free, 1 x black and1 x red strain relief, material TPE / UL 94 V-0 and plastic dust cover.

Optical specifications (random mated):
Performance:
Insertion loss (IL) Grade Bm for 100% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.15 dB
Return loss (RL) Grade 3: ≥ 35 dB
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 500 mating cycles Pull-out force patch cord: ≥ 100 N (per connector)and one side with two ST connectors each, type BFOC/2.5 in acc. with IEC 61754-2. Zirconia (ceramic) ferrule with a PC polished endface geometry, connectors qualified in acc. with IEC 61753-1 for category C (controlled environment), connector housing nickel-coated, material zinc casting, 1 x black strain relief and 1 x red strain relief and plastic dust cover.Optical specifications (random mated): Performance: Insertion loss (IL) Grade Bm for 100% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.15 dB Return loss (RL) Grade 3:≥ 35 dB Mechanical specifications: Mating cycles: delta IL < 0.2 dB after 500 mating cycles Pull-out force patch cord: ≥ 100 N (per connector)
