Patch cord FO, SC-RJ PC/UPC Grade Bm - SC-RJ PC/UPC Grade Bm, Multimode OM1 (G62.5), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 3m (R319973)

Name: Patch cord FO, SC-RJ PC/UPC Grade Bm - SC-RJ PC/UPC Grade Bm, Multimode OM1 (G62.5), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 3m (R319973) - ДП "Сінергія"
SKU: R319973

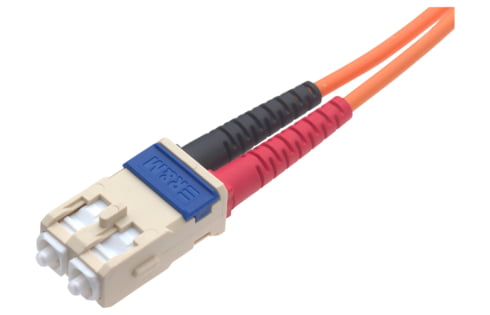

Patch cord FO, SC-RJ PC/UPC Grade Bm - SC-RJ PC/UPC Grade Bm, Multimode OM1 (G62.5), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 3m (R319973)

Both sides fitted with SC-RJ PC connector.

Connector color: beige.

Clip color: blue.

Fiber: MM G62.5/125 (OM1).

Cable: F8 2.7x5.5 mm, orange.

Артикул: R319973 Категорія: Misc

Mechanical Data

Color	orange
Cable length	3 m

Technical Data

Patch cord type	duplex figure 8
Conductor type FO	tight buffer
Fiber type	Multimode (MM)
Fiber class	OM1
Fiber diameter	G50 / 125 µm
Number of connectors (A)	1
Number of connectors (B)	1
Cable type	Patch cord, polarity A-B
Jacket material	LSZH
Cable jacket characteristics	Cable, metal-free zero-halogen flame retardant
Cable overall diameter	F8 2.7 x 5.5 mm (±0.15)
Connector type (A)	SC-RJ
Connector type (B)	SC-RJ
Connector color (A)	beige
Connector color (B)	beige
Lever- / frame-coding (A)	Color
Lever color (A)	blue
Lever- / frame-coding (B)	Color
Lever color (B)	blue
Polishing plug (A)	PC
Polishing plug (B)	PC
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss grade RL (A)	3
Return loss grade RL (B)	3
Attenuation grade IL (A)	Bm
Attenuation grade IL (B)	Bm
Connector class	connector
