Patch cord FO, SC-RJ PC/UPC Grade Bm - SC-RJ PC/UPC Grade Bm, Multimode OM4 (G50), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 5m (R802567)

Patch cord FO, SC-RJ PC/UPC Grade Bm - SC-RJ PC/UPC Grade Bm, Multimode  OM4 (G50), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 5m (R802567)

Patch cord FO, SC-RJ PC/UPC Grade Bm - SC-RJ PC/UPC Grade Bm, Multimode OM4 (G50), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 5m (R802567)

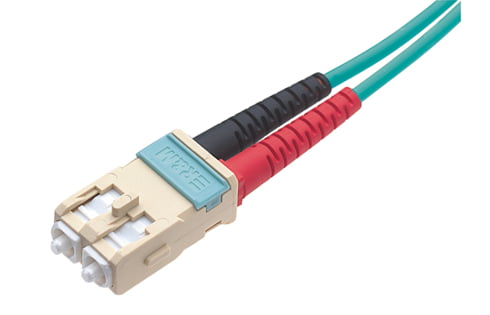

Both sides fitted with SC-RJ PC connector.

Connector color: beige.

Clip color: turquoise.

Fiber: MM G50/125 (OM4), bend-optimized.

Cable: F8 2.7x5.5 mm, turquoise.

Артикул: R802567 Категорія:
Mechanical Data

Color

turquoise/aqua

Cable length

5 m

Technical Data

Patch cord type

duplex figure 8

Conductor type FO

tight buffer

Fiber type

Multimode (MM)

Fiber class

OM4

Fiber diameter

G50 / 125 µm

Number of connectors (A)

1

Number of connectors (B)

1

Cable type

Patch cord, polarity A-B

Cable design

I-V(ZN)H

Jacket material

LSZH

Cable jacket characteristics

Cable, metal-free

zero-halogen

flame retardant

Cable overall diameter

F8 2.7 x 5.5 mm (±0.15)

Connector type (A)

SC-RJ

Connector type (B)

SC-RJ

Connector color (A)

beige

Connector color (B)

beige

Lever- / frame-coding (A)

Color

Lever color (A)

turquoise/aqua

Lever- / frame-coding (B)

Color

Lever color (B)

turquoise/aqua

Polishing plug (A)

PC

Polishing plug (B)

PC

Protection class IP (A)

IP 20

Protection class IP (B)

IP 20

Return loss grade RL (A)

3

Return loss grade RL (B)

3

Attenuation grade IL (A)

Bm

Attenuation grade IL (B)

Bm

Connector class

connector

Patch cord with LSZH jacket, F8 2.7x5.5 mm, turquoise (aqua), multimode G50 50/125 µm (OM4), bend-optimized, length .

Mounted on both sides with SC-RJ connectors in acc. with IEC61754-24. Zirconia (ceramic) ferrule with a PC polished endface geometry, connectors qualified in acc. with IEC 61753-1 for category C (controlled environment). Beige connector housing (multimode), material PBT / UL 94 V-0, turquoise coding clip (OM4), material PP halogen-free, 1 x black and 1 x red strain relief, material TPE / UL 94 V-0 and plastic dust cover.

Optical specifications (random mated):
Performance:
Insertion loss (IL) Grade Bm for 100% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.15 dB
Return loss (RL) Grade 3: ≥ 35 dB
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 500 mating cycles Pull-out force patch cord: ≥100 N (per connector)
