Patch cord FO, SC-RJ PC/UPC Grade Bm - SC-RJ PC/UPC Grade Bm, Multimode OM2 (G50), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 5m (R300120)

Name: Patch cord FO, SC-RJ PC/UPC Grade Bm - SC-RJ PC/UPC Grade Bm, Multimode OM2 (G50), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 5m (R300120) - ДП "Сінергія"
SKU: R300120

Patch cord FO, SC-RJ PC/UPC Grade Bm - SC-RJ PC/UPC Grade Bm, Multimode OM2 (G50), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 5m (R300120)

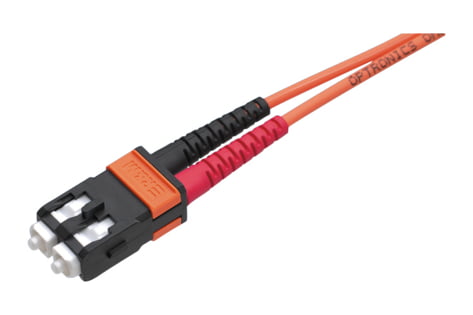

Both sides fitted with SC-RJ PC connector.

Connector color: black.

Clip color: orange.

Fiber: MM G50/125 (OM2).

Cable: F8 2.7x5.5 mm, orange.

Артикул: R300120 Категорія: Misc

Mechanical Data

Color	orange
Cable length	5 m

Technical Data

Patch cord type	duplex figure 8
Conductor type FO	tight buffer
Fiber type	Multimode (MM)
Fiber class	OM2
Fiber diameter	G50 / 125 µm
Number of connectors (A)	1
Number of connectors (B)	1
Cable type	Patch cord, polarity A-B
Jacket material	LSZH
Cable jacket characteristics	zero-halogen
Cable overall diameter	F8 2.7 x 5.5 mm (±0.15)
Connector type (A)	SC-RJ
Connector type (B)	SC-RJ
Connector color (A)	black
Connector color (B)	black
Lever- / frame-coding (A)	Color
Lever color (A)	orange
Lever- / frame-coding (B)	Color
Lever color (B)	orange
Polishing plug (A)	PC
Polishing plug (B)	PC
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss grade RL (A)	3
Return loss grade RL (B)	3
Attenuation grade IL (A)	Bm
Attenuation grade IL (B)	Bm
Connector class	connector
