Patch cord FO, ST-Simplex PC/UPC Grade Bm - ST-Simplex PC/UPC Grade Bm, Multimode OM1 (G62.5), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 1m (R30640)

Patch cord FO, ST-Simplex PC/UPC Grade Bm - ST-Simplex PC/UPC Grade Bm, Multimode OM1 (G62.5), Duplex Figur 8 (2.7 x 5.6), Eca (LSZH), 1m (R30640)

Both sides fitted with two ST PC connectors.

Fiber: MM G62.5/125 (OM1).

Cable: F8 2.7x5.5 mm, orange.

Артикул: R30640 Категорія:
Mechanical Data

Color

orange

Cable length

1 m

Technical Data

Patch cord type

duplex figure 8

Fiber type

Multimode (MM)

Fiber class

OM1

Fiber diameter

G50 / 125 µm

Number of connectors (A)

2

Number of connectors (B)

2

Cable type

Patch cord, polarity A-B

Jacket material

LSZH

Cable jacket characteristics

Cable, metal-free

zero-halogen

flame retardant

Cable overall diameter

F8 2.7 x 5.5 mm (±0.15)

Connector type (A)

ST

Connector type (B)

ST

Connector color (A)

metallic

Connector color (B)

metallic

Polishing plug (A)

PC

Polishing plug (B)

PC

Protection class IP (A)

IP 20

Protection class IP (B)

IP 20

Return loss grade RL (A)

3

Return loss grade RL (B)

3

Attenuation grade IL (A)

Bm

Attenuation grade IL (B)

Bm

Connector class

connector

Patch cord with LSZH jacket, F8 2.7x5.5 mm, orange, multimode G62.5 62.5/125 µm (OM1), length .

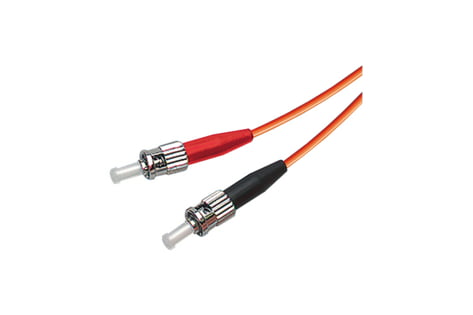

Mounted on both sides with two ST connectors each, type BFOC/2.5 in acc. with IEC 61754-2. Zirconia (ceramic) ferrule with a PC polished endface geometry, connectors qualified in acc. with IEC 61753-1 for category C (controlled environment), connector housing nickel-coated, material zinc casting, 1 x black strain relief and 1 x red strain relief, material UL 94 V-0 and plastic dust cover.

Optical specifications (random mated):
Performance:
Insertion loss (IL) Grade Bm for 100% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.15 dB
Return loss (RL) Grade 3: ≥ 35 dB
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 500 mating cycles Pull-out force patch cord: ≥ 100 N (per connector)
