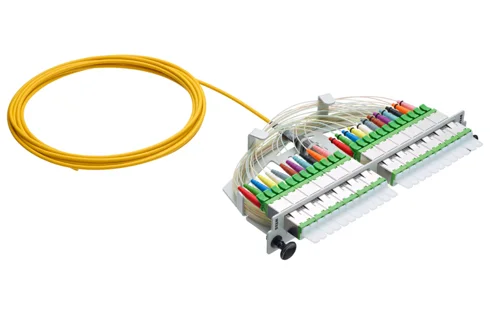

Patch Insert ODF, 12xE-2000™-Compact G.652.D, APC, ceramic, C/1 (R510729)

Patch Insert ODF, 12xE-2000™-Compact G.652.D, APC, ceramic, C/1 (R510729)

Completely assembled patch insert for installation in the CombiMODULE.

Артикул: R510729 Категорія:

Scope of supply

  • Patch insert with Snap-in Clip

  • Adapters

  • System connection cables

  • Labeling set

Technical Data

Fiber type

Singlemode (SM)

Fiber class

G.652.D (OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

12

Connector type (A)

E-2000™-Compact

Connector color (A)

green

Color (A2)

green

Lever- / frame-coding (A)

Color

Polishing plug (A)

APC 8°

Protection class IP (A)

IP 20

Return loss grade RL (A)

1

Attenuation grade IL (A)

C

Rack mounting version

slide-in unit

Assembly

fully populated

Capacity (ports)

12

Sleeve material

ceramic

Version

splice

Standard

Adapter and connector in acc. with IEC 61754-15 and EN 186270

Fan-out color code: DIN VDE 0888
