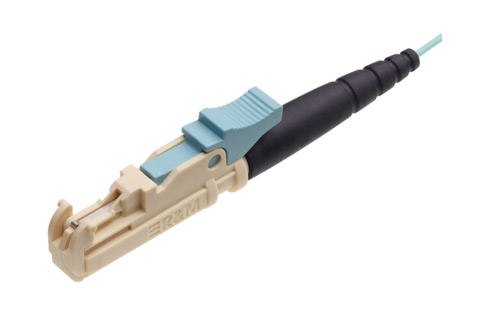

Pigtail E-2000™ PC, beige/turquoise, OM3 turquoise, Am/2, 2.5 m (R812512)

Pigtail E-2000™ PC, beige/turquoise, OM3 turquoise, Am/2, 2.5 m (R812512)

Semi-tight buffer Ø 0.9 mm with a strippability of more than 150cm and one side fitted with E-2000™ connector. Connector E-2000™ with self-closing dust- and laser shutter

Артикул: R812512 Категорія:

Scope of supply

  • Semi-tight buffer Ø 0.9 mmone side fitted with E-2000™ connector

Mechanical Data

Color

turquoise/aqua

Cable length

2.5 m

Technical Data

Conductor type FO

dry semi-tight buffer, strippability > 1.5m

Fiber type

Multimode (MM)

Fiber class

OM3

Fiber diameter

G50 / 125 µm

Number of connectors (A)

1

Cable type

Pigtail

Jacket material

LSZH

Cable jacket characteristics

Cable, metal-free

zero-halogen

Cable overall diameter

Ø 0.9 mm

Connector type (A)

E-2000™

Connector color (A)

beige

Lever- / frame-coding (A)

Color

Lever color (A)

turquoise/aqua

Polishing plug (A)

PC

Protection class IP (A)

IP 20

Return loss grade RL (A)

2

Attenuation grade IL (A)

Am

Connector class

connector

Standard

E-2000™ (LSH) connector acc. to IEC 61754-15 and EN 186270
