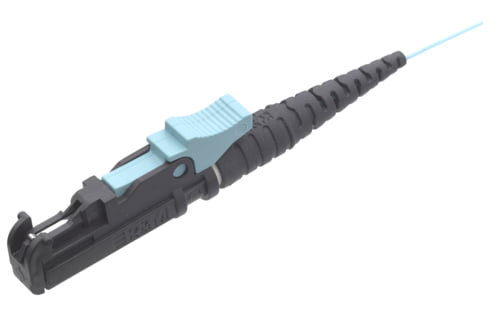

Semi-tight buffer Ø 0.9 mm with a strippability of more than 150cm and one side fitted with E-2000™ connector. Connector E-2000™ with self-closing dust- and laser shutter
Semi-tight buffer Ø 0.9 mm one side fitted with E-2000™ connector
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm | E-2000™ (LSH) connector acc. to IEC 61754-15 and EN 186270 |
| Connector class | connector |
| Protection class IP (A) | IP 20 |
| Number of connectors (A) | 1 |
| Cable type | Pigtail |
| Jacket material | LSZH |
| Cable jacket characteristics | Cable, metal-free Zero-halogen |
| Cable overall diameter | Ø 0.9 mm |
| Connector type (A) | E-2000™ |
| Polishing plug (A) | PC |
| Attenuation grade IL (A) | Bm |
| Return loss grade RL (A) | 3 |
| Connector color (A) | black |
| Lever- / frame-coding (A) | Color |
| Lever color (A) | orange |
| Fiber type | multimode (MM) |
| Fiber class | OM2 |
| Conductor type | dry semi-tight buffer, strippability > 1.5m |
| Fiber diameter | G50 / 125 µm |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 2.5 m / 8 ft 2 in |
| Color | orange |
Pigtail with semi-tight buffer PA/PBT, Ø 0.9 mm, orange, multimode G50 50/125 µm (OM2), length 2.5 m, buffer strippability > 150cm. Fitted with one E-2000™ (LSH) connector in accordance with IEC 61754-15 and EN 186270. Zirconia (ceramic) ferrule with a PC polished endface geometry, connectors qualified in acc. with IEC 61753-1 for category U (uncontrolled environment) and category E (extreme environment). Black connector housing (multimode) and orange lever, material PBT / UL 94 V-0, black strain relief, material TPE / UL 94 V-0 and silver-colored metal dust shutter.
Optical specifications (random mated):
Performance:
Insertion loss (IL) Grade Bm for 100% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.15 dB
Return loss (RL) Grade 3: ≥ 35 dB
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 500 mating cycles
Pull-out force fiber pigtail: ≥ 5 N
