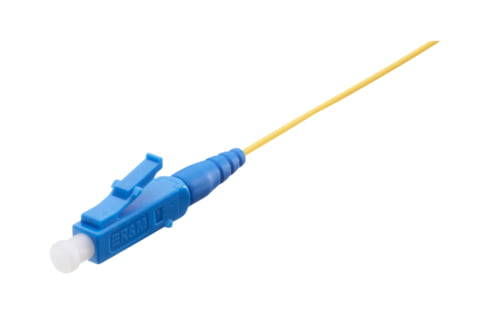

Pigtail LC PC, blue, G.657 yellow, C/2, 2.5 m (R803541)

Pigtail LC PC, blue, G.657 yellow, C/2, 2.5 m (R803541)

Compact design (SFF). 1.25 mm ferrule technology. Locking type latched push-pull.

Артикул: R803541 Категорія:

Scope of supply

  • Semi-tight buffer Ø 0.9 mmone side fitted with LC connector

Mechanical Data

Color

yellow

Cable length

2.5 m

Technical Data

Conductor type FO

dry semi-tight buffer, strippability > 1.5m

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

1

Cable type

Pigtail

Cable jacket characteristics

Cable, metal-free

zero-halogen

Cable overall diameter

Ø 0.9 mm

Connector type (A)

LC

Connector color (A)

blue

Polishing plug (A)

PC

Protection class IP (A)

IP 20

Return loss grade RL (A)

2

Attenuation grade IL (A)

C

Connector class

connector

Standard

LC connector acc. to IEC 61754-20
